Safety Recall Z4L: 3.5L V6 Timing Belt – 2019 Acura RLX & TLX, 2018-2019 MDX

April 12, 2019

Timing Belt Teeth May Separate

Teeth separation from the timing belt may result in an engine stall, increasing the risk of crash.



NHTSA Campaign Number: 19V298

Manufacturer Honda (American Honda Motor Co.)

Components ENGINE AND ENGINE COOLING

Potential Number of Units Affected 93,946



Summary

Honda (American Honda Motor Co.) is recalling certain 2018-2019 Acura MDX and Honda Pilot vehicles and 2019 Acura RLX, RLX Sport Hybrid, TLX and Honda Odyssey and Ridgeline vehicles. The timing belt teeth may separate from the belt.



Remedy

Honda will notify owners, and dealers will inspect the vehicle and replace any affected timing belt free of charge. Vehicles receiving a replacement timing belt will also have the engine inspected and any damaged components will be replaced for free. The recall is expected to begin June 1, 2019. Honda owners may contact customer service at 1-888-234-2138. Honda’s number for this recall is L4M. Acura owners may contact customer service at 1-888-234-2138. Acura’s number for this recall is Z4L.



Notes

Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.



Check if your Acura has a Recall


Service Bulletin

B19-026
April 12, 2019
Version 2



Safety Recall: 3.5L V6 Timing Belt

Supersedes 19-026, dated April 12, 2019, to revise the information highlighted in yellow



AFFECTED VEHICLES

Year Model Trim VIN Range
2018-19 MDX ALL Check the iN VIN status for eligibility.
2019 RLX ALL Check the iN VIN status for eligibility.
2019 RLX Sport Hybrid ALL Check the iN VIN status for eligibility.
2019 TLX ALL V6 Check the iN VIN status for eligibility.



REVISION SUMMARY

Under INSPECTION, Step 5 was changed.



BACKGROUND

During production, a supplier produced some timing belts that do not meet specification. These timing belts may shred or slip, causing the cam shafts to fall out of timing. Camshafts that are out of timing will set DTC P0341: CMP Sensor and CKP Sensor Incorrect Phase Detected and/or DTC P0369: CMP Sensor Circuit Intermittent Interruption and the engine will run rough. Additionally, shredded timing belts may cause the vehicle to stall and not be able to restart, which increases the risk of a crash.



CLIENT NOTIFICATION

Owners of affected vehicles will be sent a notification of this campaign.

Do an iN VIN status inquiry to make sure the vehicle is shown as eligible.

Some vehicles affected by this campaign may be in your new or used vehicle inventory.

Failure to repair a vehicle subject to a recall or campaign may subject your dealership to claims or lawsuits from the client or anyone else harmed as a result of such failure. To see if a vehicle in inventory is affected by this safety recall, do a VIN status inquiry before selling it.



CORRECTIVE ACTION

Inspect the timing belt and, if necessary, replace the timing belt. If the lot codes are not visible or the timing belt is damaged, a cylinder leak down test may be required and, based on those results, further repairs may be required.

NOTE

Only a small percentage of vehicles are expected to have timing belts that are out of specification. Only order replacement parts after you have identified an out-of-spec timing belt.



PARTS INFORMATION

NOTES

  • Parts are applicable to all models unless otherwise noted.
  • Only a small percentage of vehicles are expected to have timing belts that are out of specification. Only order replacement parts after you have identified an out-of-spec timing belt.
  • Order the engine block and the applicable cylinder head(s) after a damaged engine is identified by completing a cylinder leak-down test.



Timing Belt Replacement

Part Name Part Number Quantity

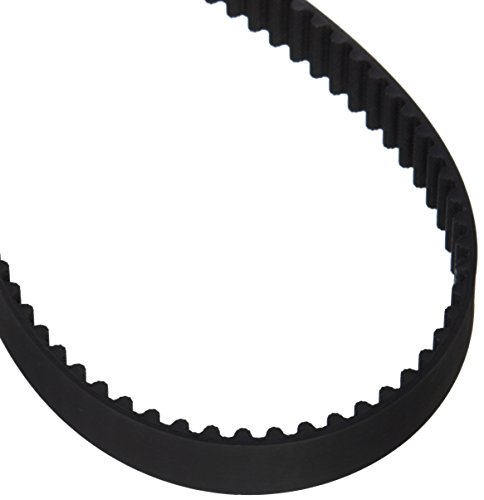

Timing Belt 14400-R9P-A01 1
Timing Belt Idler Bolt 14551-RCA-A01  1
Flange Bolt (10 x 85) 90002-R70-A00 1
Flange Bolt (10 x 30) (For MDX only) 90103-SV4-013 1
Flange Bolt (10 x 60) 90168-TA1-A00 2
Flange Bolt (10 x 105) (All except RLX Sport Hybrid) 95801-10105-08  2



Add for RLX Sport Hybrid

Part Name Part Number Quantity
Flange Bolt (12 x 45) 90161-SDA-A01 1
Flange Bolt (12 x 30) 90176-SKN-000 3
Flange Bolt (10 x 75) 90002-R8A-A00 3
Oil Filter Base/Oil Cooler Gasket 15302-5G0-A00 1
Self-Locking Nut (10 mm) 90212-SA5-003  3
Pre-Chamber Gasket 18393-SJA-A01 1
Flange Bolt (10 x 35) 90163-SDA-A01 2
Flange Bolt 10 x 35) 90161-T2A-A00 2
Flange Bolt (10 x 60) 90164-TY3-A01 2
Flange Nut (10 mm) 90371-SEF-000 4



Engine Block and Cylinder Head Replacement – MDX

Part Name Part Number Quantity
Cylinder Block Assembly 10002-5J6-A12 1
Front Cylinder Head Assembly 10004-5J6-A11 1
Rear Cylinder Head Assembly 10005-5J6-H11 1
Self-Locking Nut (10 mm) 90212-SA5-003  6
Exhaust Pipe Gasket 18212-SA7-003  2
Pre-Chamber Gasket 18393-SDB-A00  2
Flange Bolt (12 x 30) 90161-SHJ-A00 8
Flange Bolt (14 x 125) 90165-TK8-A00 2
Flange Bolt (10 x 25) 90167-SAA-010 4
Self-locking Nut (8 mm) 90212-RCA-A01  8
Front Cylinder Head Gasket Kit 06110-5J6-000 1
Rear Cylinder Head Gasket Kit 06120-5J6-000 1
Cylinder Block Gasket Kit 06111-5J6-000  1
Washer Bolt (12 x 163) 90005-PAA-A01  12
Washer Bolt (12 x 188) 90005-5G0-A01 4
EGR Gasket Pipe A 18716-R70-A01  1
EGR Gasket Pipe B 18719-R70-A01  1

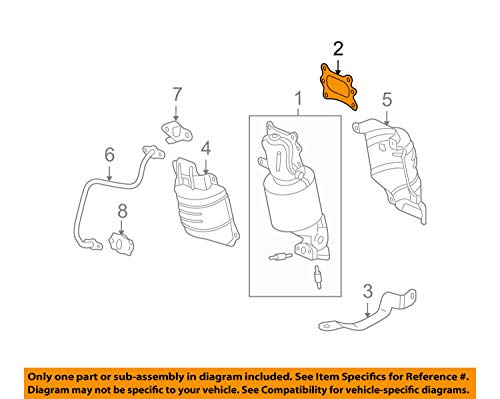

Exhaust Chamber Gasket (NIPPON LEAKLESS) 18115-5G0-A01  2
O-Ring (5/8″) 80871-SN7-003  1
O-Ring (8 mm) 80873-ST7-000 1
Castle Nut (14 mm) 90365-STX-A00  2
Split Pin (M14) 90701-S3V-A01 2
Flange Nut (12 mm) 90362-SZA-A00 2
Split Pin (3.0 x 22) 94201-30220  2
Flange Nut (12 mm) 90362-SZA-A00 2
Flange Bolt (10 x 35) 90163-SDA-A01 2
Flange Nut (12 mm) 90371-SAA-010 4
Flange Bolt (10 x 30) 90163-SDB-A00 3
Flange Bolt (12 x 75) 90163-TA0-A00 4
Fuel Joint Pipe Set 16012-R9P-315 1
O-Ring 91311-5A2-A01  1
Injector Clip 16451-5A2-A01 6
Injector Seal Set 16453-R9P-A00 2



Engine Block and Cylinder Head Replacement – RLX and RLX Hybrid

Part Name Part Number Quantity
Cylinder Block Assembly 10002-R9P-A11 1
Front Cylinder Head Assembly 10004-R9P-A10 1
Rear Cylinder Head Assembly 10005-R9P-A10 1
Self-Locking Nut (10 mm) 90212-SA5-003  6
Exhaust Pipe Gasket 18212-SA7-003  2
Pre-Chamber Gasket 18393-SJA-A01 2
Flange Bolt (14 x 150) 90176-SEF-010 4
Flange Bolt (10 x 45) 90167-SP0-000 2
Flange Bolt (12 x 25) 90396-S5A-010 2
Flange Bolt (12 x 75) 90396-S5A-010 2
Self-locking Nut (8 mm) 90212-RCA-A01  8
Front Cylinder Head Gasket Kit 06110-R9P-000 1
Rear Cylinder Head Gasket Kit 06120-R9P-000 1
Cylinder Block Gasket Kit 06111-5J6-000  1
Washer Bolt (12 x 163) 90005-PAA-A01  12
Washer Bolt (12 x 188) 90005-5G0-A01 4
EGR Gasket Pipe A 18716-R70-A01  1
EGR Gasket Pipe B 18719-R70-A01  1
Exhaust Chamber Gasket (NIPPON LEAKLESS) 18115-5G0-A01  2
O-Ring (5/8″) (RLX Only) 80871-SN7-003  1
O-Ring (8 mm) 80873-ST7-000 1
Castle Nut (12 mm) 90362-SZ3-010 2
Arm Clip (Upper) 90701-SX0-003 2
Hex Nut (12 mm) 94030-12280  2
Split Pin (3.0 x 22) 94201-30220  2
Flange Bolt (10 x 35) 90163-SDA-A01 2
Flange Nut (12 mm) 90371-SAA-010 4
Flange Bolt (10 x 30) 90163-SDB-A00 3
Flange Bolt (12 x 56) 90170-TA1-A00 4
Fuel Joint Pipe Set 16012-R9P-315 1
O-Ring 91311-5A2-A01  1
Injector Clip 16451-5A2-A01 6
Injector Seal Set 16453-R9P-A00 2



Engine Block and Cylinder Head Replacement – TLX

Part Name Part Number Quantity
Cylinder Block Assembly 10002-5J2-A00 1
Front Cylinder Head Assembly 10004-R9P-A10 1
Rear Cylinder Head Assembly 10005-5J6-A00 1
Self-Locking Nut (10 mm) 90212-SA5-003  6
Exhaust Pipe Gasket 18212-SA7-003  2
Pre-Chamber Gasket 18393-SDB-A00  2
Flange Bolt (12 x 25) 90396-S5A-010 2
Flange Bolt (14 x 135) 90176-SDA-A00  4
Flange Bolt (10 x 24) 90166-TZ7-A01 2
Flange Bolt (12 x 33) 90186-SDA-A00 2
Flange Bolt (14 x 150) 90177-TZ3-A00 2
Bolt Washer (8 x 16) 90101-SWA-A00 6
Self-locking Nut (8 mm) 90212-RCA-A01  8
Front Cylinder Head Gasket Kit 06110-5J2-A00 1
Rear Cylinder Head Gasket Kit 06120-5J2-A00 1
Cylinder Block Gasket Kit 06111-5J6-000  1
Washer Bolt (12 x 163) 90005-PAA-A01  12
Washer Bolt (12 x 188) 90005-5G0-A01 4
EGR Gasket Pipe A 18716-R70-A01  1
EGR Gasket Pipe B 18719-R70-A01  1
Exhaust Chamber Gasket (NIPPON LEAKLESS) 18115-5G0-A01  2
Castle Nut (14 mm) 90363-S3V-A01 2
Split Pin (M14) 90701-S3V-A01 2
Flange Nut (12 mm) 90362-SZA-A00 2
Split Pin (3.0 x 22) 94201-30220  2
Flange Nut (12 mm) 90362-SZA-A00 2
Flange Bolt (10 x 35) 90163-SDA-A01 2
Flange Nut (12 mm) 90371-SAA-010 4
Flange Bolt (10 x 30) 90163-SDB-A00 3
Flange Bolt (12 x 56) 90170-TZ3-A00 4
Fuel Joint Pipe Set 16012-R9P-315 1
O-Ring 91311-5A2-A01  1
Injector Clip 16451-5A2-A01 6
Injector Seal Set 16453-R9P-A00 2



REQUIRED TOOLS

Part Name Part Number Quantity
Holder Handle 07JAB-001020B  1
50 mm Offset Holder Attachment 07MAB-PY3010A  1
19 mm Socket 07JAA-001020A 1
Cylinder Leak Down Tester Commercially available 1



REQUIRED MATERIALS

Material Name Part Number Quantity
Acura Long-Life Antifreeze/Coolant Type 2 OL999-9011  3
Acura Genuine Motor Oil 0W-20 08798-9041 6
Hondabond HT (1 tube repairs 4 vehicles) 08718-0004  1



WARRANTY CLAIM INFORMATION

Timing Belt Inspection

Operation
Number
Description Flat Rate
Time
Defect
Code
Symptom
Code
Template
ID
Failed Part
Number
1105C3 MDX 0.5 hr 6CX00 Z4L00 B19026A 14400-R9P-A01
1105C3 RLX 0.5 hr 6CX00 Z4L00 B19026B 14400-R9P-A01
1105C8 RLX Sport Hybrid 0.9 hr 6CX00 Z4L00 B19026C 14400-R9P-A01
1105C3 TLX 0.5 hr 6CX00 Z4L00 B19026D 14400-R9P-A01



Timing Belt Inspection, Replacement, Diagnosis (Cylinder Leak Down and Valve Timing), and Verify Valve Timing

Operation
Number
Description Flat Rate
Time
Defect
Code
Symptom
Code
Template
ID
Failed Part
Number
1105C5 MDX 3.2 hr 6CX00 Z4L00 B19026E 14400-R9P-A01
1105C5 RLX 2.9 hr 6CX00 Z4L00 B19026F 14400-R9P-A01
1105D0 RLX Sport Hybrid 5.1 hr 6CX00 Z4L00 B19026G 14400-R9P-A01
1105C5 TLX 3.2 hr 6CX00 Z4L00 B19026H 14400-R9P-A01



Timing Belt Inspection, Diagnosis, and Replace the Engine Block and One Cylinder Head

NOTE

For MDX, the FRT includes time for evacuating and recharging the A/C system.

Operation
Number
Description Flat Rate
Time
Defect
Code
Symptom
Code
Template
ID
Failed Part
Number
1105C6 MDX 2WD 12.5 hr 6CX00 Z4L00 B19026I 14400-R9P-A01
1105C6 MDX AWD 12.5 hr 6CX00 Z4L00 B19026J 14400-R9P-A01
A Add for AWD 0.4 hr
1105C6 RLX 13.4 hr 6CX00 Z4L00 B19026K 14400-R9P-A01
1105D1 RLX Sport Hybrid 13.8 hr 6CX00 Z4L00 B19026L 14400-R9P-A01
1105C6 TLX 2WD 12.0 hr 6CX00 Z4L00 B19026M 14400-R9P-A01
1105C6 TLX AWD 12.0 hr 6CX00 Z4L00 B19026N 14400-R9P-A01
A Add for AWD 0.4 hr



Timing Belt Inspection, Diagnosis, and Replace the Engine Block and Two Cylinder Heads

NOTE

For MDX, the FRT includes time for evacuating and recharging the A/C system.

Operation
Number
Description Flat Rate
Time
Defect
Code
Symptom
Code
Template
ID
Failed Part
Number
1105C7 MDX 2WD 12.7 hr 6CX00 Z4L00 B19026O 14400-R9P-A01
1105C7 MDX AWD 12.7 hr 6CX00 Z4L00 B19026P 14400-R9P-A01
A Add for AWD 0.4 hr
1105C7 RLX 13.6 hr 6CX00 Z4L00 B19026Q 14400-R9P-A01
1105D2 RLX Sport Hybrid 14.0 hr 6CX00 Z4L00 B19026R 14400-R9P-A01
1105C7 TLX 2WD 12.3 hr 6CX00 Z4L00 B19026S 14400-R9P-A01
1105C7 TLX AWD 12.3 hr 6CX00 Z4L00 B19026T 14400-R9P-A01
A Add for AWD 0.4 hr

Skill Level: Repair Technician



INSPECTION

  1. Place the vehicle on a lift, and remove the right front wheel.
  2. Remove the top engine cover.
  3. Remove the rear upper timing belt cover.

3.1 Remove the 5 bolts.

rear upper timing belt cover

3.2 Remove the rear upper timing belt cover.

For RLX Sport Hybrid only:

3.1 Remove the fuel injector control unit (FICU).

3.2 Remove the cable clips.

3.3 Remove the 5 bolts securing the front timing belt cover.

front timing belt cover

  1. Mark the side of the timing belt as shown with a grease pen or marker.

Mark the side of the timing belt

  1. Rotate the engine clockwise until you see the timing belt manufacturing information (lot code) or until the mark you made on the timing belt is visible again.

NOTES

You may need to rotate the engine several times before either the lot code or the mark you made is visible.

  • If the lot code is visible, go to step 6.
  • If the lot code is not visible, go to TIMING BELT REPLACEMENT.
  1. Check the Lot Code.

Check the Lot Code

    • If the Lot Code is listed in the table, go to step 7.
    • If the Lot Code is not listed in the table, the timing belt is okay, and the inspection is complete. Reassemble the vehicle in the reverse order of removal.
85B001 85B013 85E013 85E021 85E029 85E033 85E037 85E041 85F006 85F017
85F021 85F037 85F045 85F053 85G012 85G024 85G032 85G036 85G043 85G054
85H004 85H012 85H024 85H052 85I017 85I032 85I037 85I040 85I044 85L013
85L017 85L021 85L025 85L029 85L037 85L045 85M005 85M009 85M013 85M021
85N029 85N045 868039 868052 86B003 86B007 86B026 86B034 86C018 86C044
86C048 86I004 86I010 86I014 86J001 86J045 86J049 86J053 86K005 86K009
86K013 86K025 86K029 86K033 86K039 86L016 86L028 86L032 86L040 86L044
86L056 86M028 86M044 86M048 86M052 86M056 86P028 86P044 86R003 86R019
86R043 86R051 86S054 86T064 876006 876039 87A038 87B007 87B015
  1. Check the belt position code.

Check the belt position code

    • If all of the belt position values are less than 170, the timing belt is okay. Reassemble the vehicle in the reverse order of removal.
    • If any of the belt position values are 170 or more, go to TIMING BELT REPLACEMENT.



TIMING BELT REPLACEMENT

  1. For RLX Sport Hybrid Only: Disconnect the 12-volt negative battery cable.
  2. For RLX Sport Hybrid Only: Turn off the service plug.
  3. For RLX Sport Hybrid Only: Disconnect the electric A/C compressor.

3.1 Remove the cover.

Remove the cover

3.2 Remove the cable holder.

Remove the cable holder

3.3 Remove the cable clips.

3.4 Disconnect the electric A/C compressor connector.

  1. For RLX Sport Hybrid Only: Remove the air cleaner.
  2. For RLX Sport Hybrid Only: Disconnect exhaust pipe A.

exhaust pipe A

  1. Turn the crankshaft so its white mark on the crankshaft pulley lines up with the pointer.

NOTE

The other pointer is not used.

white mark

  1. Install the timing belt cover, and check that the No. 1 piston top dead center (TDC) mark on the front camshaft pulley and the pointer on the front upper covers are aligned.

NOTES

Front

*Non-Hybrid shown. Hybrid cover will be removed.

(TDC) mark



Rear

*Hybrid shown. Non-Hybrid cover will be removed.

(TDC) mark

  1. Remove the drive belt.

Remove the drive belt

  1. Partially remove the right side splash shield to gain access to the lower half of the engine.
  2. Remove the crankshaft pulley.

10.1 Hold the pulley with the holder handle and the crankshaft pulley holder attachment.

Remove the crankshaft pulley

10.2 Remove the bolt with a heavy duty 19 mm socket and a breaker bar, then remove the crankshaft pulley.

  1. For RLX Sport Hybrid Only: Remove the oil filter base, oil cooler, oil filter assembly without disconnecting the water hoses.

oil filter base/oil cooler/oil filter assembly

  1. TLX and RLX: Remove the engine cover.
  2. Lift and support the engine with a jack and a wood block under the oil pan.
  3. For RLX Sport Hybrid Only: Remove the rear engine mount stop and the rear engine mount mounting bolt.

rear engine mount stop

14.1 Remove the rear engine mount stop.

14.2 Remove the rear engine mount mounting bolt.

  1. For RLX Sport Hybrid Only: Remove the lower transmission mount.

lower transmission mount

51.1 Remove the lower transmission mount bracket mounting bolts and the lower transmission mount mounting bolts.

15.2 Remove the lower transmission mount.

  1. Remove the upper part of the side engine mount.

16.1 Disconnect the ground cable.

16.2 Remove the harness clamp bracket and the upper half of side engine mount bracket.

MDX

side engine mount bracket



RLX and TLX

side engine mount bracket



RLX Sport Hybrid

side engine mount bracket

NOTE

You do not need to move the VSA modulator control unit.

  1. For RLX Sport Hybrid Only: Raise the engine about 35 mm.
  2. Remove the upper covers.

upper covers

  1. Remove the lower cover.

NOTE

For RLX Sport Hybrid only, remove the lower cover after removing the lower half of the side engine mount bracket.

lower cover

  1. Hold the timing belt adjuster.

20.1 Remove one of the battery clamp bolts from the battery tray, and grind the end of it as shown.

battery clamp bolt

20.2 Thread the battery clamp bolt in as shown to hold the timing belt adjuster in its current position. Tighten it by hand.

NOTICE

Do not tighten the bolt with a wrench.

Do not tighten the bolt with a wrench

  1. Remove the timing belt guide plate.

timing belt guide plate

  1. Remove the lower half of the side engine mount bracket.

side engine mount bracket

  1. Remove the idler pulley bolt and the idler pulley, then remove the timing belt.

idler pulley bolt

  1. Check the timing marks are still in the proper position as mentioned in steps 1 and 2.
  2. Loosely install the idler pulley with a new idler pulley bolt so the pulley can move, but does not come off.

idler pulley bolt

  1. Install the timing belt in a counter-clockwise sequence starting with the drive pulley:

Install the timing belt in a counter-clockwise sequence

26.1 Drive Pulley

26.2 Idler Pulley

26.3 Front Camshaft Pulley

26.4 Water Pump Pulley

26.5 Rear Camshaft Pulley

26.6 Adjusting Pulley

NOTE

If the timing belt auto-tensioner has extended and the timing belt cannot be installed, do the timing belt auto tensioner installation procedure. Refer to the service information.

  1. Torque the idler pulley bolt to 45 N·m (33 lb-f).

idler pulley bolt

  1. Remove the battery clamp bolt.

Remove the battery clamp bolt

  1. Check the cam timing and do a cylinder leak down test.

NOTE

The following steps will determine if there was any valve to piston contact requiring the replacement of the cylinder block and one or both cylinder heads.

29.1 Remove all the spark plugs.

29.2 Do the cylinder leak down test. For information about the cylinder leak down test, refer to the following:

    • See the Tech2Tech video titled Cylinder Leak Down Testing
    • See the Online University Self-Study Module WBENC10 Pump Theory and Cylinder Performance Testing

NOTES

  • Rotate the engine only in a clockwise direction.
  • Confirm each cylinder is tested at TDC.
  • A good cylinder should have less than 10% cylinder leakage.

29.3 If the cylinder leak down test results show that all six cylinders have a leak down rate of 10% or less, go to step 30 and finish installing the timing belt.

29.4 If the cylinder leak down test results show that at least one cylinder has a leak down rate that is more than 10%, and the leak is from the intake or exhaust valves, replace the short block and the cylinder head(s) where the leak is coming from. Refer to the service information.

NOTE

If the leak is coming through the crankcase, this bulletin does not apply. Continue with normal troubleshooting.

  1. Install the lower half of the side engine mount bracket using new bolts. Torque the bolts to 45 N·m (33 lb-f).

NOTES

side engine mount bracket

  1. Install the timing belt guide plate as shown.

timing belt guide plate

  1. Install the timing belt covers:

32.1 Install the lower cover, and torque the bolts to 12 N·m (9 lb-ft).

lower cover

32.2 Install the upper covers, and torque the bolts to 12 N·m (9 lb-ft).

upper covers

  1. For RLX Sport Hybrid Only: Lower the engine 35 mm.
  2. Install the upper half of the side engine mount bracket using new bolts:

34.1 Loosely install the upper half of the side engine mount bracket using new bolts.

NOTE

For RLX Sport Hybrid, install the upper half of the bracket in step 41.

MDX

side engine mount bracket



RLX and TLX

side engine mount bracket

34.2 Connect the ground cable.

34.3 Remove the jack and wood block.

34.4 Tighten the side engine mount bracket mounting bolts in the sequence shown.

  1. For RLX Sport Hybrid: Loosely Install the lower transmission mount.

lower transmission mount

  1. For RLX Sport Hybrid: Loosen the front engine mount mounting bolt.

front engine mount stop

36.1 Remove the front engine mount stop.

36.2 Loosen the front engine mount mounting bolt.

  1. Loosen the transmission mount bracket mounting bolt.

transmission mount bracket

  1. For RLX Sport Hybrid: Tighten the front engine mount stop and front engine mount mounting bolt.

front engine mount stop

38.1 Tighten the front engine mounting bolt.

38.2 Install the front engine mount stop using new nuts.

  1. Install the rear engine mount stop and engine mount mounting bolt.

rear engine mount stop

39.1 Install the new rear engine mount mounting bolt.

39.2 Install the rear engine mount stop using new nuts.

  1. For RLX Sport Hybrid: Tighten the lower transmission mount bracket mounting bolts and the lower transmission mount mounting bolts in the numbered sequence shown.

lower transmission mount bracket

  1. Tighten the side engine mount bracket mounting bolts in the numbered sequence shown.

side engine mount bracket

  1. For RLX Sport Hybrid: Tighten the transmission mount bracket mounting bolts in the numbered sequence shown.

transmission mount bracket

  1. Install the oil filter base/oil cooler/oil filter assembly with a new O-ring.

oil filter base/oil cooler/oil filter assembly

  1. Install the crankshaft pulley.

44.1 Remove any oil and clean the pulleys, the crankshaft, the bolt, and the washer. Lubricate with new engine oil as shown.

Lubricate with new engine oil

44.2 Install the crankshaft pulley.

43.3 Hold the pulley with the holder handle and the pulley holder attachment (50 mm offset). Torque the bolt to 65 N·m (48 lb-ft).

NOTE

Do not use an impact wrench.

Torque the bolt

Torque the bolt

44.4 Tighten the bolt an additional 60°.

Tighten the bolt an additional 60°

  1. Check the camshaft timing.

54.1 Rotate the crankshaft pulley about 6 turns clockwise so the timing belt positions itself on the pulleys.

45.2 Turn the crankshaft pulley so the white mark lines up with the pointer.

NOTE

The other pointer is not used.

white mark

45.3 Check the camshaft pulley marks.

NOTES

If the marks are not aligned, rotate the crankshaft one full turn and recheck the camshaft pulley mark.

  1. For RLX Sport Hybrid: Connect exhaust pipe A.
  2. For RLX Sport Hybrid: Install the air cleaner.
  3. For RLX Sport Hybrid: Turn on the service plug.
  4. For RLX Sport Hybrid: Connect the 12-volt negative battery cable.
  5. Install the drive belt tensioner.
  6. Install the splash shield.
  7. TLX and RLX: Install the engine cover.
  8. Install the passenger’s side front wheel and torque the nuts to 127 N·m (94 lb-ft).
  9. Do the CKP learn procedure.

54.1 Connect the HDS/i-HDS.

54.2 Select CRANK PATTERN in the ADJUSTMENT MENU with the HDS.

54.3 Select CRANK PATTERN CLEAR with the HDS, and clear the CKP pattern.

54.4 Select CRANK PATTERN LEARNING with the HDS, and follow the screen prompts.

END


9 Affected Products

Vehicles

MAKE MODEL YEAR
ACURA MDX 2018-2019
ACURA RLX 2019
ACURA RLX HYBRID 2019
ACURA TLX 2019
HONDA ODYSSEY 2019
HONDA PILOT 2018-2019
HONDA RIDGELINE 2019

19 Associated Documents

DEFECT INFORMATION REPORT

RMISC-19V298-2749.pdf 140.784KB

Download (PDF, 137KB)


Manufacturer Notices(to Dealers,etc) – 04 12 2019 UPDATE: Revision for SB 19-026, Safety Recall: 3.5L V6 Timing Belt

RCMN-19V298-7080.pdf 88.873KB

Download (PDF, 87KB)


Manufacturer Notices(to Dealers,etc) – 04 12 2019 Timing Belt (14400-R9P-A01) Inspection

RCMN-19V298-3993.pdf 90.458KB

Download (PDF, 88KB)


Manufacturer Notices(to Dealers,etc) – April 12, 2019 Safety Recall:18-19 MDX, 2019 TLX 3.5L, RLX, and RLX Sport Hybrid Timing Belt

RCMN-19V298-0918.pdf 154.618KB

Download (PDF, 151KB)


Remedy Instructions and TSB

RCRIT-19V298-1132.pdf 1742.547KB

Download (PDF, 1.66MB)


Manufacturer Notices(to Dealers,etc) – 04 12 2019 UPDATE: Revision for SB 19-026, Safety Recall: 3.5L V6 Timing Belt

RCMN-19V298-1107.pdf 35.311KB

Download (PDF, 34KB)


Manufacturer Notices(to Dealers,etc) – April 12, 2019

RCMN-19V298-2331.pdf 35.952KB

Download (PDF, 35KB)


Manufacturer Notices(to Dealers,etc) – 04 12 2019 UPDATE: Revision for SB 19-026, Safety Recall: 3.5L V6 Timing Belt

RCMN-19V298-8555.pdf 36.612KB

Download (PDF, 36KB)


Manufacturer Notices(to Dealers,etc) – April 12, 2019

RCMN-19V298-4149.pdf 34.935KB

Download (PDF, 34KB)


Remedy Instructions and TSB

RCRIT-19V298-6640.pdf 1742.301KB

Download (PDF, 1.66MB)


Manufacturer Notices(to Dealers,etc) – April 12, 2019 Safety Recall:18-19 Pilot and 2019 Odyssey and Ridgeline Timing Belt Inspectiion

RCMN-19V298-3827.pdf 150.842KB

Download (PDF, 147KB)


Remedy Instructions and TSB

RCRIT-19V298-6771.pdf 2639.066KB

Download (PDF, 2.52MB)


Remedy Instructions and TSB

RCRIT-19V298-1201.pdf 2642.871KB

Download (PDF, 2.52MB)


Recall Acknowledgement

RCAK-19V298-2455.pdf 382.865KB

Download (PDF, 374KB)


Remedy Instructions and TSB

RCRIT-19V298-8221.pdf 2639.066KB

Download (PDF, 2.52MB)


Remedy Instructions and TSB

RCRIT-19V298-3465.pdf 2642.87KB

Download (PDF, 2.52MB)


Manufacturer Notices(to Dealers,etc) – 04 12 2019 Timing Belt (14400-R9P-A01) Inspection

RCMN-19V298-9683.pdf 91.59KB

Download (PDF, 89KB)


Manufacturer Notices(to Dealers,etc) – 04 12 2019 UPDATE: Revision for SB 19-045, Safety Recall: 3.5L V6 Timing Belt

RCMN-19V298-3356.pdf 34.663KB

Download (PDF, 34KB)


Defect Notice 573 Report

RCLRPT-19V298-6327.PDF 218.296KB

Download (PDF, 213KB)


Recalls Documents

https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=19V298&docType=RCL




SaleBestseller No. 1
Castrol 03060 GTX MAGNATEC 0W-20 Full Synthetic Motor Oil, 5 Quart
  • -Dramatically reduce engine wear
  • -Leave critical engine parts 4X smoother* * As tested in the industry Sequence IVA wear test
  • -Superior wear protection on critical engine parts
  • -Unsurpassed level of protection against viscosity breakdown
  • -Unique full synthetic technology to fight against harmful sludge build-up
Bestseller No. 2
AmazonBasics Full Synthetic Motor Oil, SN Plus, 0W-20, 1 Quart, 6 Pack
  • Full-synthetic motor oil (0W-20, 1 quart, 6 pack); formulated for longer drain intervals
  • Formulated to reduce likelihood of Low Speed Pre-Ignition; reduces friction for improved fuel economy and protection against engine wear
  • High resistance to viscosity and thermal breakdown
  • Helps to fight volatility burn-off to minimize engine deposits and exhaust emissions
  • dexos1 Gen 2, API SN Plus, and ILSAC GF-5 approved; always follow vehicle manual recommendations
Bestseller No. 3
AmazonBasics Full Synthetic Motor Oil, SN Plus, 0W-20, 5 Quart
  • Full-synthetic motor oil (0W-20, 5 quart); formulated for longer drain intervals
  • Formulated to reduce likelihood of Low Speed Pre-Ignition; reduces friction for improved fuel economy and protection against engine wear
  • High resistance to viscosity and thermal breakdown
  • Helps to fight volatility burn-off to minimize engine deposits and exhaust emissions
  • dexos1 Gen 2, API SN Plus, and ILSAC GF-5 approved; always follow vehicle manual recommendations
SaleBestseller No. 4
Valvoline SynPower 0W-20 Full Synthetic Motor Oil - 5qt (813460)
  • Excellent engine cleanliness through superior sludge and varnish protection
  • Outstanding high-temperature protection under severe driving conditions and superior cold-temperature protection through faster oil flow at start-up
  • Helps maintain fuel efficiency
  • Meets the performance requirements of virtually all naturally aspirated, turbocharged and supercharged passenger cars operating in North America
  • For any product use or product technical questions call 1-800-TEAM-VAL
Bestseller No. 5
Pennzoil Platinum Full Synthetic Motor Oil (SAE, SN) 0W-20, 5 Quart - Pack of 1
  • Engineered to provide a high-quality base oil using our revolutionary PurePlus gas-to-liquid technology in combination with a high performance additive system
  • Helps protect against the effects of low speed pre-ignition (LSPI) in modern turbocharged engines
  • Provides better fuel economy which helps you drive an extra 550 miles per year vs a dirty engine
  • Offers unsurpassed wear protection by keeping engine parts from coming into contact
  • Delivers outstanding piston cleanliness, keeping pistons up to 50% cleaner than required by the toughest industry standards- based on Sequence IIIH engine test results
SaleBestseller No. 6
Castrol 03124 EDGE 0W-20 Advanced Full Synthetic Motor Oil, 5 Quart
  • Advanced premium full synthetic motor oil to offer strength under extreme pressure
  • Titanium strong for maximum engine performance
  • Reduces metal-to-metal contact across a range of different driving speeds
  • Protects the engine for the entire drain interval even under extreme pressure
  • Decreases engine deposit formation to help maximize engine response
Bestseller No. 8
SaleBestseller No. 9
Royal Purple 06020-6PK API-Licensed SAE 0W-20 High Performance Synthetic Motor Oil - 1 qt. (Case of 6)
  • Better Wear Protection
  • Increased Fuel Efficiency
  • Better Protection of the Expensive Catalytic Emission System
  • Improved Compatibility with Fuels Containing Ethanol
  • Superior Corrosion Protection
SaleBestseller No. 10
Valvoline Full Synthetic with MaxLife Technology SAE 0W-20 Motor Oil-5 Quart Bottle 852399, 160. Fluid_Ounces
  • Special seal conditioners to help reduce oil consumption
  • Seal conditioners rejuvenate aging engine seals to help stop and prevent oil leaks
  • Extra cleaning agents to help reduce deposits, sludge and varnish formation
  • Advanced thermal and oxidative stability to help reduce oil burn-off and maximize power output
  • All of the benefits of a full synthetic motor oil with added technology for engines over 75,000 miles

Last update on 2019-07-12 / Affiliate links / Images from Amazon Product Advertising API

Last update on 2019-07-12 / Affiliate links / Images from Amazon Product Advertising API

Leave A Comment

Your email address will not be published. Required fields are marked *

*

This site uses Akismet to reduce spam. Learn how your comment data is processed.
