Warranty Extension: Sticking Rings Resulting In High Engine Oil Consumption

NHTSA ID Number: 10152428

Manufacturer Communication Number: A12-087

Summary

“Service bulletin – American Honda is extending the warranty coverage on the Piston Rings and Pistons for 2008-11 Accord L4 to 8 years from the original date of purchase or 125,000 miles, whichever comes first. The warranty extension does not apply to any vehicle that has ever been declared a total loss or sold for salvage by a financial institution or insurer, or has a branded, or similar tittle under any state’s law.”

4 Affected Products

Vehicle

MAKE	MODEL	YEAR

HONDA	ACCORD	2008-2011

AFFECTED VEHICLES

Year	Model	Trim	VIN Range
2008–11	Accord L4	ALL	Check the iN VIN status eligibility

BACKGROUND

American Honda is extending the warranty coverage on the Piston Rings and Pistons for 2008-11 Accord L4 to 8 years from the original date of purchase or 125,000 miles, whichever comes first.

The warranty extension does not apply to any vehicle that has ever been declared a total loss or sold for salvage by a financial institution or insurer, or has a branded, or similar tittle under any state’s law. To check for vehicle eligibility, you must do a VIN status inquiry.

Some vehicles may be affected by S/B 11-049, Product Update: Software Update to Improve Fuel Injector and VTC Timing. Do an iN VIN status inquiry, and if the product update applies, make sure you update the vehicle before continuing with this warranty extension.

Additionally, there are three Tech2Tech videos for reference:

Tips When Working with Fracture Rods
Using Cylinder Wall Inspection Tool (To be released in January 2019)
Let’s Talk Spring Compressors

CUSTOMER NOTIFICATION

Owners of affected vehicles will receive a notification of this warranty extension. Do an iN VIN status inquiry to make sure the vehicle is shown as eligible.

SYMPTOM

The engine oil level is low on the dipstick, and the oil warning light may come on in rare high oil consumption situations.

POSSIBLE CAUSES

Under certain specific circumstances the engine may create deposits on the oil control rings, which may lead to increased oil consumption when all of the following conditions occur simultaneously on a regular and prolonged basis:

The engine is cold (not warmed up to operating temperature)
Hard acceleration while the engine is cold
The fuel used has an unusually high concentration of particles – Honda recommends using Top Tier gas that contains detergents to prevent deposits. For more information about Top Tier gas, go to www.toptiergas.com.

All these conditions happening at the same time is rare, but if they do, deposits may form over years of driving. If the oil control rings begin to stick because of the deposits, the customer may subsequently complain about excessive oil consumption.

CORRECTIVE ACTION

Do the procedure under DIAGNOSIS and based on your results, replace all of the engine pistons and piston rings if necessary.

Service Advisor: Talk to the customer about the many factors contributing to oil consumption. Remind him or her that with less frequent service intervals for modern engines, it’s not uncommon to add oil between services. Therefore, it’s a good idea to check the engine oil regularly (as recommended in the owner’s manual) and add oil as necessary.

PARTS INFORMATION

Genuine Honda 13204-RBB-004 Connecting Rod Bolt

TOOL INFORMATION

Part Name	Part Number	Quantity
Camshaft Lock Pin Set	07AAB-RWCA120	1
Crank Pulley Holder	07AAB-RJAA100	1
Handle 6-25-660L	07JAB-001020B	1
Engine Hanger	AART1256	1
Gasket Remover/Pan Separator	LIL50190	1
Piston Ring Expander	Snap-On PRS8 or equivalent	1
Piston Ring Compressor	SCP1287 or equivalent	1
1/2 in. Drive Torque Angle Gauge	BLMBLDAG001 or TA360	1

DIAGNOSIS

1. Do an engine oil consumption test. Refer to the Job Aid Engine Oil Consumption Test.

2. Review the results of the engine oil consumption test.

Based on the test results, if the engine is consuming an unusually high amount of oil, contact your DPSM for approval, then go to REPAIR PROCEDURE.
Based on the test results, if the engine is consuming a normal amount of engine oil, the vehicle is OK. Explain to the customer that the vehicle is OK, and that the consumption of oil is within a normal range.

NOTE

Remind the customer to regularly check the engine oil level every time they fill the fuel tank. Modern engines require less frequent oil changes, which may impact the amount of oil used between oil changes.

REPAIR PROCEDURE

This procedure is an outline form that you can also use as a checklist for the repair. For details on the procedures noted, refer to the appropriate service manual, or view them online.

Engine Oil Replacement
Battery Terminal Disconnection and Reconnection
Fuel Pressure Relieving
Coolant Replacement
Drive Belt Removal/Installation
Intake Manifold Removal and Installation
Warm Up TWC Removal/Installation

Note

Disconnect TWC at the A-pipe at TWC.

Fuel Line/Quick-Connect Fitting Removal
Cylinder Head Removal
Cam Chain Removal
Rocker Arm Assembly Removal
Valve Adjustment
Oil Pan Installation
ECM Idle Learn Procedure

NOTES

Before starting work, make sure to order the correct number of “A” and “B” pistons. Refer to ORDERING PISTONS at the end of this bulletin.
Use fender covers to avoid damaging painted surfaces.
To avoid damaging the wires and terminals, unplug the wiring connectors carefully while holding the connector portion.
To avoid damaging the cylinder head, wait until the engine coolant temperature drops below 100°F (38°C) before loosening the cylinder head bolts. If needed, connect the HDS to the DLC, and monitor ECT SENSOR 1.
Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact any other wiring or hoses, or interfere with any other parts.

1. Make sure that Service Bulletin 11-049, Product Update: Software Update to Improve Fuel Injector and VTC Timing is complete.

2. Put the vehicle on a lift.

3. Relieve the fuel pressure.

4. Do the battery terminal disconnection procedure.

5. Drain the engine oil.

6. Remove the strut brace (if equipped).

7. Drain the engine coolant.

NOTE

Use a clean container to recover coolant for re-use.

8. Remove the drive belt.

9. Remove the intake manifold. Remove the intake manifold bracket lower bolt.

NOTE

It is not necessary to remove the two nuts or the bracket from the intake manifold.

10. Unbolt TWC at the A-Pipe, leaving the TWC mounted to the cylinder head assembly.

11. Disconnect the brake booster vacuum and EVAP canister hoses.

12. Remove the quick-connect fitting cover, then disconnect the fuel feed hose.

13. Disconnect the four fuel injector connectors, the engine mount control solenoid valve connectors, and disconnect the ground cables.

14. Remove the four bolts securing the EVAP canister purge valve bracket.

15. Disconnect the radiator hoses and the heater hoses. Disconnect the ATF warmer bypass hose (if equipped)

NOTE

The second radiator hose is connected to the thermostat and is not shown.

16. Remove the two bolts securing the connecting hose. Disconnect the water bypass hose.

17. Remove the front cam chain cover and the cam chain.

18. Use zip ties to hold the four intake rocker assemblies together to ease re-installation.

19. To prevent damage to the camshafts, loosen the bolts, in sequence, two turns at a time. Remove the camshaft holder bolts, Remove the rocker arm assembly and both cam shafts.

NOTE

Bolt #1 is not on all engines.

20. To prevent warpage, loosen the bolts in sequence 1/3 turn at a time, repeat the sequence until all the bolts are loosened. Remove the cylinder head bolts.

21. Remove the cylinder head with the catalytic converter attached.

NOTE

Be careful not to lose the lost motion springs.

22. Raise the vehicle on the lift.

23. Remove the clutch case cover (M/T) or the torque converter cover (A/T), and remove the two bolts securing the oil pan to the transmission.

24. With A/T: Remove the shift cable cover.

25. Remove the bolts securing the oil pan.

26. Using the pan separator, separate the oil pan from the engine block in the indicated areas, and remove the oil pan.

27. To hold the balance shaft, insert a 6 mm (1/4in.) diameter long pin punch into the maintenance hole in the balance shaft holder and through the rear balancer shaft.

28. Remove the cam chain and oil pump chain auto-tensioner.

29. Loosen the oil pump sprocket mounting bolt.

30. Remove the oil pump sprocket and the oil pump.

31. Remove the baffle plate.

32. Lower the vehicle to a comfortable working height, and place a clean shop towel around the cylinder wall to prevent debris from entering the coolant passage.

33. Cylinder Wall Inspection. If vertical scratches are noted in the cylinder wall, refer to Job Aid Using Cylinder Wall
Inspection Tool and or Tech2Tech “Using Cylinder Wall Inspection Tool”.

NOTE

Do not use finger nail or pencil lead to determine if engine block is usable. Always use the cylinder wall inspection tool to inspect any scratches. Light to moderate scratches that may be detected with your finger nail, but do not affect the engine, will pass when using the cylinder wall inspection tool.

If the engine block is good, go to the next step.
If the engine block is no good, replace the engine block. The pistons and rings in the new engine block do not need to be replaced. This bulletin no longer applies. You must obtain DPSM authorization and refer online to Engine Removal and Installation to reinstall the engine.

34. Remove the rod caps and the bearings.

NOTES

Before removing the rod caps, use a grease pencil or suitable marking pen to mark each cap and its corresponding connecting rod with the cylinder number it came from.
Do not confuse the existing marking on the side of the connecting rod and rod cap with a cylinder number. They are just manufacturing marks referring to the size of the big end of the rod.
Installing a rod cap incorrectly will result in engine knock and/or engine failure. Remove and mark one rod assembly at a time to make sure it is assembled correctly.
When torqueing the rod cap bolts, refer to the service information for details.
Click HERE to go to the Tech2Tech® video “Tips When Working with Fracture Rods”.

35. Use a wooden hammer handle to drive out each of the piston and connecting rod assemblies.

NOTE

Be careful not to damage the cylinder walls or the crankshaft when pushing out the pistons and the connecting rod assemblies.

36. Visually inspect all the connecting rod bearing for signs of damage.

NOTES

If your fingernail catches on a scratch or groove in the bearing, replace it. Pictured are normal reusable rod bearings after about 35,000 miles. Some discoloration is normal and does not require replacement.
If the bearings look like they must be replaced, contact your DPSM for authorization.

37. Measure the diameter of each connecting rod bolt at points A and B.

37.1. Calculate the difference in diameter between points A and B:

Point A – Point B = Difference in Diameter
Difference in Diameter Specification: 0 – 0.1 mm (0.004 in.)
If the difference in diameter is out of specification, replace the connecting rod bolt.

38. Put on eye protection, then remove the snap rings from both sides of each piston. Start at the cutout in the piston pin bore. Remove the snap rings carefully so they don’t go flying or get lost.

39. Put on gloves, heat the piston and the small end of the connecting rod to about 158°F (70°C), then remove the piston pin.

NOTE

The old piston, the pin, and the snap rings won’t be reused.

40. Install a new piston pin snap ring on one side of a new piston.

41. Coat the piston pin bore in the piston, the bore in the connecting rod, and the piston pin with new engine oil.

42. Heat the piston to about 158°F (70°C).

43. Assemble the piston and the connecting rod with the arrow and the embossed mark on the same side. Install the piston pin.

NOTE

When the piston and the rod end are heated properly, the piston pin should slide into position relatively easily. You will damage the piston if you try to use a hammer or a press to force the piston pin in.

44. Install the remaining snap ring.

45. Turn the snap ring in the ring grooves until the end gaps are positioned at the bottom of the piston.

46. Repeat steps 38 through 45 for the remaining pistons.

47. Using a piston ring expander, install the spacer and two oil rings. Then install the second ring and top ring with the manufacturing marks facing up. The second ring has a “2” followed by a letter or letters. The top ring has a “1” followed by a letter or letters.

NOTE

The new rings may not have the same manufacturing marks as the originals.

48. Rotate the rings in their grooves to make sure they do not bind.

49. Position the ring end gaps as shown.

50. Rotate the crankshaft so that cylinders 1 and 4 are at bottom dead center (BDC).

51. Remove the connecting rod cap to piston 1, and check that the bearing is securely in place.

52. Apply new engine oil to the piston, the inside of the ring compressor, the cylinder bore, and the rod bearings.

NOTE

Cylinder wall honing is NOT required for this repair.

53. Position the mark to face the cam chain end of the engine block.

54. Set the piston in the ring compressor, and position the piston in the cylinder based on the rod/cap marks that you made in step 34.

55. Set the ring compressor on the piston bore, then push the piston in with your hands.

56. Stop after the ring compressor pops free, and check the connecting rod-to-rod journal alignment before pushing the piston into place.

57. Apply new engine oil to the bolt threads, then install the connecting rod cap with the bearing. Torque the bolts to 41 N·m (30 lb-ft).

58. Tighten the connecting rod bolts an additional 120°.

NOTE

If you tighten a rod bolt beyond the specified angle, remove it and repeat steps 57 and 58. Do not loosen the bolt back to the specified angle.

59. Repeat steps 47 through 58 for piston number 4.

60. Rotate the crankshaft so that cylinders 2 and 3 are at bottom dead center (BDC).

61. Repeat steps 47 through 58 for piston number 2 and 3.

62. Rotate the crankshaft several times after all connecting rods have been installed to ensure that nothing is binding.

63. Install the baffle plate, and torque the bolts to 12 N·m (8.7 lb-ft).

64. Set the crankshaft to top dead center (TDC). Align the TDC mark on the crankshaft sprocket with the pointer on the engine block.

65. Apply new engine oil to the threads of the oil pump mounting bolts and the oil pump sprocket mounting bolt, then loosely install the oil pump with a new O-ring.

66. Torque the oil pump mounting bolts and the oil pump sprocket mounting bolt according to figure shown.

67. Align the dowel pin on the rear balancer shaft with the mark on the oil pump.

68. Install the oil pump chain on the crankshaft sprocket with the colored link plate aligned with the TDC mark on the crankshaft sprocket.

69. Set the oil pump sprocket on the oil pump chain with the punch mark aligned with the center of the colored link plates, then install the oil pump chain sprocket to the oil pump.

Apply new engine oil to the threads of the oil pump sprocket mounting bolt, then install it and torque it to 44 N·m (33 lb-ft).

70. Install the oil pump chain auto-tensioner, and torque the bolts to 12 N·m (8.7 lb-ft).

71. Remove the 6 mm (1/4 in.) diameter long pin punch.

72. Remove the 3.0 mm pin from the oil pump chain auto-tensioner.

73. Remove all of the old liquid gasket from the oil pan mating surfaces, the bolts, and the bolt holes.

74. Clean and dry the oil pan mating surfaces.

75. Apply liquid gasket, P/N 08718-0004 to the engine block mating surface of the oil pan and to the inside edge of the threaded bolt holes. Install the component within 5 minutes of applying the liquid gasket.

NOTES

Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line.
If more than 5 minutes have passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
Do not apply any sealant where the cam chain case is installed because the sealant will dry before you can reinstall the case.

76. Install the oil pan to the engine block.

77. Tighten the bolts in three steps. In the final step, torque all bolts, in sequence, to 12 N·m (9 lb-ft).

NOTES

Wait at least 30 minutes after installing the cam chain case before filling the engine with oil.
Do not run the engine for at least 3 hours after installing the oil pan.

78. Install a new oil filter.

79. Reinstall the clutch case cover and torque the bolts to 12 N·m (8.7 lb-ft). Reinstall the two bolts securing the oil pan to the transmission and torque them to 64 N·m (47 lb-ft).

80. With A/T: Reinstall the shift cable cover, and torque the bolts to 12 N·m (9.0 lb-ft).

81. Reinstall the cylinder head with a new gasket.

Measure the diameter of each cylinder head bolt at point A and point B.
If either diameter is less than 10.8 mm (0.417 in), replace the cylinder head bolt.
Apply new engine oil to the threads and under the bolt heads of all cylinder head bolts.

Torque the cylinder head bolts in sequence to 39 N·m (29 lb-ft). When using a preset click-type torque wrench, be sure to tighten slowly and do not overtighten. If a bolt makes any noise while you are torquing it, loosen the bolt and retighten it from the first step.

After torqueing, tighten all cylinder head bolts in two steps (90° per step) using the sequence shown above. If you are using a new cylinder head bolt, tighten the bolt an extra 90°.

NOTE

Remove the cylinder head bolt if you tightened it beyond the specified angle, and go back to the second bullet to re-measure the bolt. Do not loosen it back to the specified angle.

82. Reinstall the rocker arm assembly and the camshafts.

83. Reinstall the cam chain.

84. Apply liquid gasket to the oil pan where it meets the cam chain case and to the inside edge of the threaded bolt holes. Install the cam chain case within 5 minutes of applying the liquid gasket.

85. Install the cam chain cover.

86. Reinstall crank pulley and torque the bolt to 49 N·m (36 ft-lb).

87. Adjust the valve clearance. Refer to the service manual for Valve Clearance Adjustment.

Valve Clearance:

Intake: 0.21 – 0.25 mm (0.0083 – 0.0098 in)

Exhaust: 0.25 – 0.29 mm (0.0098 – 0.0114 in)

Specified Torque (Intake & Exhaust)

7 x 0.75 mm: 14 N·m (1.4 kgf·m, 10 lbf·ft) Apply new engine oil to the nut threads.

88. Reinstall or reconnect the following components:

Reinstall the cylinder head cover.
Reinstall the coolant connecting pipe.
Reinstall the upper radiator hose, the heater hoses, and the water bypass hose.
Reinstall the EVAP canister purge valve bracket.
Reconnect the four fuel injectors, the engine mount control solenoid connector, and the ground cables.
Reconnect the fuel feed hose and the quick connect fitting cover.
Reconnect the EVAP canister hose.

89. Install a new gasket from TWC to A-pipe.

90. Install the intake manifold using new gaskets.

91. Reinstall the drive belt.

92. Fill the engine with coolant using recovered coolant. Add new as needed.

93. Reinstall the strut brace (if equipped), and torque the bolts to 22 N·m (16 lb-ft).

94. Fill the engine with oil.

95. Reinstall right side engine mount.

96. Do the battery terminal reconnection procedure.

97. Crank the engine for about 5 seconds to prime the engine with oil pressure before plugging in the ignition coils.

98. Reconnect the four ignition coils.

99. Do the idle learn procedure.

ORDERING PISTONS

Every engine has some combination of A- and B-sized pistons. You can determine the sizes and their locations in the block by inspecting the markings on the timing chain end of the engine block or by looking at the pistons. If you look at the piston, the pistons have identifiers; “A” pistons are unmarked; “B” pistons are marked with a “B”. Make sure you order the appropriate number of each piston size before starting work.

1 Associated Document

Manufacturer Communications

A12-087
December 19, 2018
Version 8

https://www.nhtsa.gov/recalls?nhtsaId=10152428

MC-10152428-0001.pdf 4047.55KB

⬇ Download PDF (3.86 MB)

NHTSA ID Number: 10083874

Manufacturer Communication Number: 12-087

Summary

SERVICE BULLETIN – STICKING RINGS RESULTING IN HIGH ENGINE OIL CONSUMPTION.

1 Associated Document

Service Bulletin Document

A12-087
April 20, 2016
47913-01614 Version 5

https://www.nhtsa.gov/recalls?nhtsaId=10083874

SB-10083874-2280.pdf 2888.497KB

⬇ Download PDF (2.75 MB)

SaleBestseller No. 1

Valvoline Advanced Full Synthetic SAE 0W-20 Motor Oil 5 QT

Advanced protection against the four main causes of engine breakdown: wear friction heat and deposits
Delivers 40% stronger wear protection than industry standards to reduce friction and improve fuel economy
Provides 15% better deposit defense vs. industry standards, keeping engines cleaner for smoother performance and longer-lasting protection
Up to 2.5X better heat protection vs. industry standards to fight harmful sludge formation and thermal breakdown
Engineered for excellent low-temperature flow, reducing metal-to-metal contact during cold starts — when most engine wear typically occurs

Bestseller No. 2

Castrol GTX Full Synthetic 0W-20 Motor Oil, 5 Quarts

6X better wear protection on critical engine parts than industry standards**
1.3X better sludge protection than industry standards*
3X Stronger against viscosity breakdown than leading full synthetic^
Protection for 10,000 miles between oil changes
Meets or exceeds the following specifications: API SP/SN PLUS/SN | ILSAC GF-6 | GM dexos1 Gen 3 | Meets Ford WSS-M2C947-B1 | Meets Ford WSS-M2C962-A1 |

Bestseller No. 3

Mobil 1 Advanced Fuel Economy Full Synthetic Motor Oil 0W-20, 5 Quart

Mobil 1 Advanced Fuel Economy full-synthetic motor oil 0W-20 is low-viscosity to help improve fuel economy.*
Utilizes Mobil 1’s signature Triple Action Formula to deliver outstanding engine performance, protection, and cleanliness
Helps protect critical engine parts for up to 10,000 miles between oil changesm,** controlling oxidation to prevent oil breakdown and maintaining excellent viscosity
Meets ILSAC GF-6 standards to help provide low-speed pre-ignition (LSPI) and timing chain wear protection while keeping your engine clean
Helps extend engine life by working to prevent damaging deposits and sludge buildup

SaleBestseller No. 4

Valvoline™ Full Synthetic High Mileage with MaxLife™ Technology SAE 0W-20 Motor Oil 5 QT, (Model: 852399)

Full synthetic formula is engineered with Enhanced MaxLife Technology to prevent engine breakdown in vehicles with over 75,000 miles
Formulated with seal conditioners to prevent and treat oil leaks, Valvoline Full Synthetic High Mileage minimizes oil consumption and maximizes engine life
50% better wear protection than the industry standard and 25% extra defense against deposits, sludge, corrosion and rust
Meets or exceeds all requirements of ILSAC GF-6A, API SP, API SN with SN Plus, API SN
American made and formulated, from the Original Motor Oil brand trusted for more than 150 years

Bestseller No. 5

Mobil 1 Extended Performance Full Synthetic Motor Oil 0W-20, 5 Quart

Mobil 1 Extended Performance full-synthetic motor oil 0W-20 helps protect critical engine parts for up to 20,000 miles between oil changes,* controlling oxidation to prevent oil breakdown and maintaining excellent viscosity
Utilizes Mobil 1’s Triple Action+ Formula to combine outstanding engine performance, protection, and cleanliness with the added benefit of power
Meets ILSAC GF-6 standards to help provide low-speed pre-ignition (LSPI) and timing chain wear protection while keeping your engine clean and helping to improve your fuel economy
Helps extend engine life by working to prevent damaging deposits and sludge buildup
Provides excellent internal engine heat protection (up to 500 degrees F) and low temperature protection (to -40 degrees F)

Last update on 2026-05-23 / Affiliate links / Images from Amazon Product Advertising API

This product presentation was made with AAWP plugin.

Buffer Copy Email Facebook Flipboard Hacker News LinkedIn Messenger Mix Pinterest Print Reddit SMS Telegram Tumblr X VK WhatsApp Line Xing

Part Name	Part Number	Quantity
BOLT, CONNECTING ROD (Up to 8 as required after measurements)	13204-RBB-004 Genuine Honda 13204-RBB-004 Connecting Rod Bolt CR-V '12-'14 (KA/KC/KX) Genuine OEM Direct fit Genuine Honda Parts 13204-RBB-004 Connecting Rod Bolt $22.49 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-17 / Affiliate links / Images from Amazon Product Advertising API	8
BOLT, WASHER, 11×176 (Up to 10 as required after measurements)	90005-RNA-A01 Honda Genuine Bolt-Washer (11X176) Genuine OEM part $16.61 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API	10
BOLT, FLANGE, 12×45 ( Side engine mount )	90165-SDA-A00	1
BOLT, FLANGE, 12×65 ( Side engine mount )	90168-TA0-A00	1
Drain plug washer	94109-14000 Honda 94109-14000 Oil Drain Plug Gasket Pack of 50 Factory replacement oil pan drain plug washer Fits all Honda oil pan drain plugs Fits all Honda manual transmission drain plugs $39.85 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-17 / Affiliate links / Images from Amazon Product Advertising API	1
GASKET, Cylinder Head	12251-R40-A01 Genuine Honda 12251-R40-A01 Cylinder Head (Nippon Leakless) Gasket Genuine Honda 12251-R40-A01 Cylinder Head (Nippon Leakless) Gasket $66.76 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API	1
GASKET, SET	12030-R44-A00 Sale Genuine Honda 12030-R44-A00 Head Cover Gasket Set Genuine OEM Part Country of Origin : United States Package Dimensions: 5 L x 18.1 H x 13.5 W (centimeters) Package Weight: 0.19 kilograms $82.95 −$4.34 $78.61 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-17 / Affiliate links / Images from Amazon Product Advertising API	1

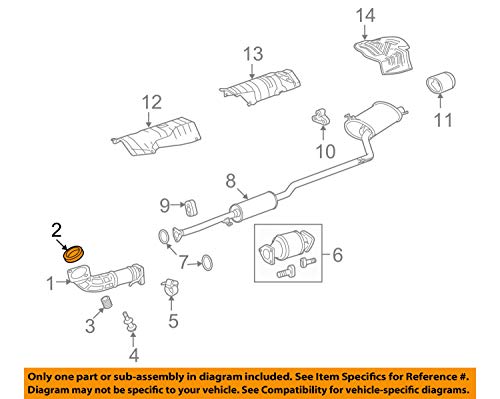

GASKET, Exhaust Flexible ( Catalytic to A pipe)	18229-SEA-013 Genuine Honda 18229-SEA-013 Exhaust Flexible Gasket Genuine Honda 18229-SEA-013 Exhaust Flexible Gasket $55.00 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API	1
HondaBond HT ( 1 tube repairs 5 vehicles )	08718-0004 Honda 08717-0004 Hondabond 4; New # 08717-1194 Made by Honda New $11.90 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-17 / Affiliate links / Images from Amazon Product Advertising API	1
Honda Coolant Type 2 ( 1 gallon will be used to top off 2 vehicles )	OL999-9011 Honda Genuine Extended Life Antifreeze/Coolant Type 2, 50/50 Pre-Diluted, 1 Gallon Genuine Honda Type 2 Long-Life Blue Coolant, pre-mixed 50/50 (ready to use) Protects metal and non-metal cooling system parts against corrosion and rust Freeze protection and boil-over resistance for extreme temperature performance Replaces part number OL999-9011 - matches factory fill for Honda systems requiring Type 2 coolant Long service life — up to 5 years or ~60,000 miles under normal conditions $34.14 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API	1
Honda Motor Oil, Full Synthetic 0W20 ( 6 quarts of oil to be used )	08798-9063 Honda 08798-9063 Blended Full Synthetic Motor Oil, 1 Quart Bottle, 32 Oz For best performance, follow the manufacturer's recommendations in your vehicle owner’s manual. Specifically formulated for Honda ultra fuel efficient vehicles only Provides protection from corrosion and reduces engine wear Fights formation of sludge and other engine deposits Excellent engine protection under a wide range of operation conditions and temperature extremes $16.03 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API	6
Oil Filter	15400-PLM-A02 Honda 15400-PLM-A01 Oil Filter w/Washer Honda 15400-PLM-A01 Filter Oil Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-17 / Affiliate links / Images from Amazon Product Advertising API	1
O-Ring ( At oil pump )	91301-R40-A01 Honda 91301-R40-A01, Engine Oil Pump Gasket Genuine Oem:Yes, Fitment Type:Direct Replacement, Quantity Needed:1 Brand:Honda, Fitment Footnotes:O-ring, Sme:_5444 Manufacturer Part Number:91301R40A01, Vendor:Vendor Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-17 / Affiliate links / Images from Amazon Product Advertising API	1
O-Ring, Chain Case	91302-PNA-004 Sale Honda Genuine O-Ring, Chain CASE Genuine OEM part $11.28 −$4.53 $6.75 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API	1
Oil Seal, Control Valve ( O-ring at VTC Valve assembly )	15832-RAA-A01 Sale 16 Reviews Genuine Honda 15832-RAA-A01 Control Valve Oil Seal Genuine Honda 15832-RAA-A01 Control Valve Oil Seal $18.95 −$5.95 $13.00 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API	1
Packing A, Intake Manifold	17115-R40-A01 2 Reviews Honda Genuine Gasket A Genuine OEM part $13.06 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API	4
Piston SET A (STD) (Dealer must determine how many to order)	13010-R40-A00 13010-R40-A00 Car Engine Piston Ring Set Compatible For Honda Accord Acura Odyssey CR-V 2008-2014 Product Introduction: This product is the core moving component inside the cylinder of an automobile engine. Piston rings are usually composed of gas rings and oil rings. It is a cylindrical structure that forms an effective seal between the piston and cylinder wall, preventing high-temperature and high-pressure gases from entering the crankcase from the combustion chamber Fuel economy: Good sealing means more complete combustion and less energy loss. After replacing the piston ring kit, the engine can use fuel more efficiently, significantly reducing fuel consumption and returning to a healthy state. Production materials: Our product uses higher grade aluminum alloy materials and surface treatments than the original factory, which have higher wear resistance and anti bite properties, thereby extending the engine life after major repairs. Solving the problem of oil burning: One of the main reasons for oil burning in old engines is the wear, carbon buildup, or loss of elasticity of piston rings (especially oil rings). Replacing the entire set of new piston rings can fundamentally restore normal oil scraping ability, effectively control the entry of oil into the combustion chamber, and solve the stubborn problem of oil burning. Easy installation: Our product has undergone rigorous testing and is consistent with your original car, ready to use. If you are unsure if your product is suitable, please send me pictures of your old product and the chassis number information, and we will help you answer. $71.21 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API	4
Piston SET B (STD) (Dealer must determine how many to order)	13020-R40-A00 Genuine Honda 13020-R40-A00 Piston Set B (STD) Product Type :Auto Part Package Dimensions :1.0" L X4.49" W X4.25" H Package Weight :4.25Lbs Package Quantity :1 $83.89 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-17 / Affiliate links / Images from Amazon Product Advertising API	4
Ring Set (STD)	13011-R44-A01 Genuine Honda 13011-R44-A01 Piston (STD) Ring Set Product Type :Auto Part Package Dimensions :1.0 " L X4.02 " W X0.98 " H Package Weight :3.74 lbs Package Quantity :1 $98.29 Buy on Amazon Price incl. tax, excl. shipping Last update on 2026-06-17 / Affiliate links / Images from Amazon Product Advertising API	4

Warranty Extension: Sticking Rings Resulting in High Engine Oil Consumption – 2008-2011 Honda Accord

Summary

Summary

Leave a Comment Cancel reply
