Warranty Extension: Engine Block – 2006-2009 Honda Civic

A10-048
January 9, 2015
ATB 44796-01324 REV 6



Warranty Extension: Engine Block

Supersedes 10-048, dated December 18, 2013, to revise the information highlighted in yellow.



AFFECTED VEHICLES

Year Model Trim VIN Range
2006–08 Civic ALL ALL VINs beginning with 1HG or 2HG – Check eligibility with a iN VIN status inquiry.
2009 Civic ALL ALL VINs beginning with 1HG, 19X, and 2HG – Check eligibility with a iN VIN status inquiry.



REVISION SUMMARY

Under WARRANTY CLAIM INFORMATION and MANDATORY PHOTO REQUIREMENTS, the photo criteria have changed.



BACKGROUND

On some 2006–08 and early production 2009 Civics, the engine (cylinder) block may leak engine coolant, resulting in engine overheating. To increase customer confidence, American Honda is extending the warranty of the engine block to 10 years from the original date of purchase, with no mileage limit.

The warranty extension does not apply to any vehicle that has ever been declared a total loss or sold for salvage by a financial institution or insurer, or has a branded, or similar title under any state’s law. To check for vehicle eligibility, you must do a VIN status inquiry.



CUSTOMER NOTIFICATION

Customers were originally sent a notification of this warranty extension that indicated the warranty on the engine block was being extended to eight years. They were sent another notification that the warranty on the block is being extended to 10 years.

Do an iN VIN status inquiry to make sure the vehicle is shown as eligible.



CORRECTIVE ACTION

If confirmed by your diagnosis, install a new engine block.



PARTS INFORMATION

Part Name Part Number Quantity
All except Natural Gas: Block, Short, General Assembly 10002-RNA-A50  1
Natural Gas only: Block, Short, General Assembly 10002-RNE-A01  1
Bolt, Flange (12 x 18) 90018-SNA-010 2
Bolt, Flange (12 x 25) 90182-S2H-000 2
Bolt, Flange (12 x 35) 90168-S5A-000 2
Bolt, Flange (12 x 40) 90164-S5A-010 3
Bolt, Flange (12 x 40) 90160-SNA-A00  1

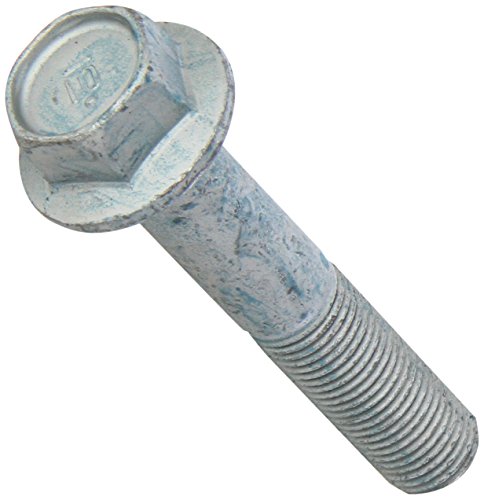

Bolt, Flange (12 x 63) 90168-SZ3-000  1
Bolt, Flange (12 x 84) 90118-SNA-000  2
Bolt, Flange (14 x 93) 90165-SNA-A00  1
Bolt, Flange (14 x 94) 90116-SNA-010 2
Bolt, Flange (14 x 115)

NOTE: Applies to some 2007 and all 2008 Civics; see the parts catalog for the correct application.

90175-S5A-000  4
Bolt, Flange (14 x 130)

NOTE: Applies to some 2006 and all 2007 Civics; see the parts catalog for the correct application

90175-SNA-A00  4

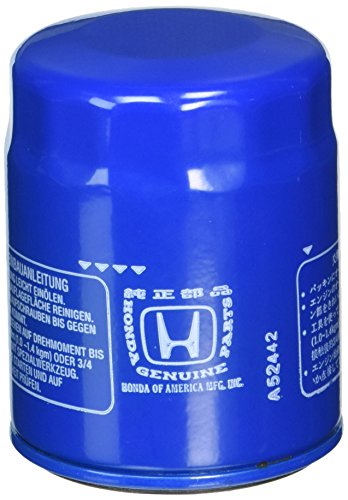

Filter, Oil 15400-PLM-A01  1
Gasket Kit, Cylinder Head 06110-RNB-999  1

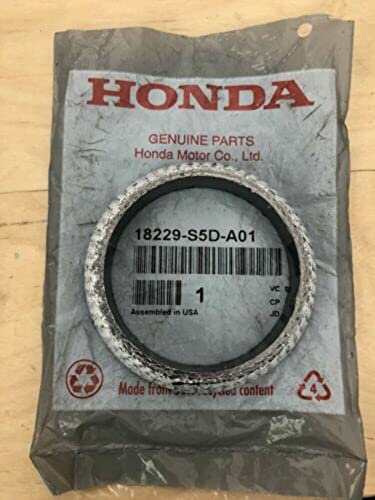

Gasket, Flexible Exhaust 18229-S5D-A01  1
Nut, Flange (12 mm) 90371-SEF-000 2
Nut, Flange (14 mm) 90213-S5A-003  1
Nut (10 mm) 90212-SA5-003  1
Nut (12 mm) 90215-SB0-003  4
Nut, Spindle (22 mm) 90305-692-010  2
O-ring Set, Oil Pump 15101-RNA-A00  1
Oil Seal 91212-RNA-A01 1
Pilot Bearing (bushing) (M/T) 22103-RNA-004  1
Plate, Partition (coolant separator) 11103-RNA-A01  1
Ring, Set, A/T (26 x 1.8) 44319-SR1-003  2
Ring, Set, Left Side M/T (28 x 2.0) 44319-S1A-E01 1
Ring, Set, Right Side M/T (28 x 2.0) 44319-S84-300  1

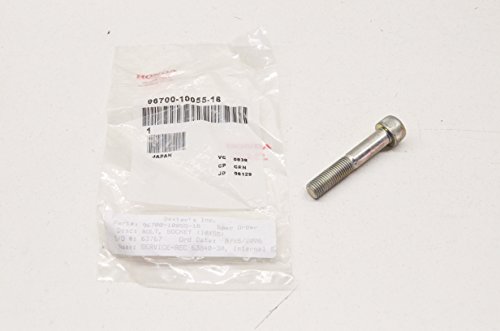

Socket, Drive Bolt (10 x 55) 96700-10055-18  1
Washer, Drain Plug (A/T) (16 mm) 90471-RPC-000  1
Washer, Drain Plug (A/T) (18 mm) 90471-PX4-000  1
Washer, Drain Plug (M/T) (14 mm) 94109-14000  1
Washer, Drain Plug (M/T) (20 mm) 94109-20000  1



REQUIRED MATERIALS

Part Name Part Number Quantity
Honda Genuine Long Life Antifreeze/Coolant Type 2 0L999-9011  2
Honda Genuine Automatic Transmission Fluid ATF-DW1 08200-9008  3
Honda Genuine Manual Transmission Fluid 08798-9016  2
Hondabond HT Silicone Gasket 08718-0001  1
Honda Genuine Motor Oil, 5W-20 08798-9023 5



WARRANTY CLAIM INFORMATION

  • If you are replacing an engine block because of coolant leakage resulting in engine overheating, and the vehicle is within the warranty extension period, (10 years from the original date of purchase and no mileage limit), use the information below to submit a claim.
  • You must submit at least four photos in order for the warranty claim to be processed. If your photos do not meet the requirements, your claim may be subject to debit.
  • Save all photos with the repair order (R.O.) for 36 months.
Operation Number Description Flat Rate Time Failed Part Number
1111P8 Replace the engine block because of a coolant leak (includes submitting photos to Warranty). 12.6 hours 10002-RNA-A00

Defect Code: 5E200
Symptom Code: R4300
Skill Level: Repair Technician



INSPECTION PROCEDURE

Look for coolant leaking from cracks in the block at the points shown below. On the back side of the engine, remove the oil/air separator cover so you can check beneath it. Pressure-test the cooling system if needed.

Is the block leaking coolant in any of the areas shown?

Yes – Go to REPAIR PROCEDURE.

No – Continue with normal troubleshooting.

Front of the Engine

Back of the Engine



REPAIR PROCEDURE

  1. Take a photo of the crack in the engine block. Refer to MANDATORY PHOTO REQUIREMENTS for more information.
  2. Remove the engine and transmission assembly by referring to the electronic service manual. Enter keywords ENGINE REMOVAL, and select Engine Removal (R18A1 Engine) from the list.
  3. Remove the ignition coils by referring to the electronic service manual. Enter keywords IGNITION COIL, and select Ignition Coil Removal/Installation (R18A1 and R18A4 Engine) from the list.
  4. Inspect the ignition coils for lengthening due to overheating.

Is there a gap in the insulation greater than 1 mm (0.04 inch)?

Yes – Replace the affected coil(s).

No – Re-use the original coil(s).

  1. Remove the cylinder head by referring to the electronic service manual.
  2. Inspect the cylinder head by referring to the electronic service manual. Enter keywords HEAD INSPECT, and Cylinder Head Inspection for Warpage (R18A1 and R18A4 Engine) from the list, and do steps 2 and 3.
  3. Remove the engine oil pump by referring to the electronic service manual. Enter keywords OIL PUMP, and select Oil Pump Overhaul from the list. Set the pump aside for use later.
  4. M/T only: Remove the M/T from the engine. Enter keywords TRANS REMOVAL, and select Manual Transmission Removal (5M/T) from the list.
  5. A/T only: Remove the A/T from the engine. Enter keywords TRANS REMOVAL, and select Automatic Transmission Removal (A/T) from the list.
  6. Install the original oil pump on the new engine block assembly with new O-rings and a new seal.

NOTE: Refer to “Install Crankshaft Pulley Correctly to Prevent Oil Pump Damage,” ServiceNews, December 2007.

  1. Install the original cylinder head on the new engine block assembly. Enter keywords HEAD INSTALL, and select Cylinder Head Installation (R18A1 Engine) from the list.

NOTE: Be sure to install the partition plate (coolant separator) before installing the cylinder head.

  1. M/T only: Install the new crankshaft pilot bearing, and the original flywheel, clutch, and pressure plate onto the engine. Enter keyword CLUTCH, and select Clutch Replacement (5M/T) from the list.
  2. M/T only: Install the M/T onto the engine. Enter keywords TRANS INSTALLATION, and select Manual Transmission Installation (5M/T) from the list.
  3. A/T only: Install the original drive plate onto the engine. Enter keywords AUTO TRANS, select Drive Plate Removal and Installation from the list, and begin at step 3.
  4. A/T only: Install the A/T onto the engine. Enter keywords TRANS INSTALLATION, select Automatic Transmission Installation (A/T) from the list, and begin at step 3.
  5. Install the engine and transmission assembly into the vehicle. Enter keywords ENGINE INSTALL, and select Engine Installation (R18A1 Engine) from the list.

NOTE:

  • To avoid electrical problems, make sure that the ground wire connection G101 (Photo 29 ETM) is clean and tight.
  • To avoid coolant mixing in the gas tank, make sure you do not confuse the canister purge line with the coolant bypass hose.
  1. To avoid false misfire detection, do the crank (CKP) pattern clear and CKP pattern learn procedures. Enter keywords HOW TO TROUBLESHOOT FUEL, and select How to Troubleshoot Fuel and Emissions Systems (R18A1 Engine, A/T), or (R18A1 Engine, M/T) from the list.



MANDATORY PHOTO REQUIREMENTS

  • You must submit at least four photos in order for the warranty claim to be processed. If your photos do not meet the requirements, your claim may be subject to debit.
  • Save all photos with the repair order (R.O.) for 36 months.

Photo 1

Photograph the doorjamb label that shows the VIN. The VIN and barcode must be clear and readable like the example shown below.

NOTE: If you are using the camera flash, make sure you can read the information because the flash’s reflection could make the image hard to read.

doorjamb label



Photos 2 through 4

Photograph the crack in the engine block. The crack must be clearly visible and in focus in the block. Also include a post-it note that lists the VIN, the length of the crack and the crack location, for example, between cylinders three and four.

If the crack is not clearly visible, highlight the crack and its location with a penetrant inspection developer (Met-LCheck, D70, or other commercially available developer).

You must include at least three photos to clearly show the crack and its location in the block.

crack and its location in the block



UNACCEPTABLE DEFECT PHOTOGRAPH EXAMPLES

This photo is unacceptable for these reasons:

  • It is out-of-focus and unreadable.
  • The file size is too small (351kb).

out-of-focus and unreadable



This photo is unacceptable for these reasons:

  • It is too dark.
  • It lacks focus, detail, and marking materials that identify the area and extent of the defect, as specified in this service bulletin and per warranty claim submittal standards.

too dark



ATTACHING PHOTOS TO A CLAIM

Go to the Photo Attachments area of the claim form to upload images as shown below.

  1. To attach photos to the claim, click the Upload Images

Upload Images



The Claim Photo Attachment screen appears.

Claim Photo Attachment



  1. Click Browse. The Choose File to Upload window appears.

Choose File to Upload



  1. Click to highlight an image file to be uploaded.
  2. Click Open to select the file.
  3. Click Preview if you would like to view the image before uploading. The preview image appears.

Fit To Window is selected by default as the size at which the preview image is displayed. Select Full Size if you want to enlarge the image, and use the scrollbars to view different areas of the enlarged image.

Preview



  1. Click Upload to attach the image to the warranty claim.

The Uploaded Images count increases each time you upload a photo.

Upload



  1. Click Browse again and follow the same steps to continue attaching images to the claim. To properly document each warranty repair claim, at least two photos must be attached.
  2. When finished attaching photos, click Close.

The file names of your attached photos now appear in the Photo Attachments area of the claim form, as shown below.

Photo Attachments



VIEWING AND DELETING PHOTO ATTACHMENTS

After uploading photo attachments, you can view the photos by clicking the View Images link in the Photo Attachments area. The Claim Photo Attachment screen displays thumbnails of all photos attached to the claim.

View Images



Click on a thumbnail to view the photo attachment, as shown above. To delete a photo attachment, simply click Delete to the left of its thumbnail.

Delete



When your claim and photos are completely ready, click Submit to send the claim to the American Honda Warranty department.



WARRANTY CLAIM PHOTO ATTACHMENT INQUIRY

After submitting a warranty claim, you can view its photo attachments at any time as follows:

  1. From the Service >Warranty menu, click Warranty Claim Photo Attachment Inquiry.
  2. Enter any of the following: Claim Number, VIN, Repair Order Number, or Repair Order Date.
  3. Click submit. Thumbnails of all photos attached to the claim appear, as shown below.
  4. Click on any thumbnail to view the photo attachment. NOTE:
    • Photo attachments are archived on the iN for 2 years.
    • Whenever you open a saved warranty claim and attach or delete photos, you must either Save or Submit the claim to retain your photo attachment changes.

Submit



CORRECTING PHOTO PROBLEMS USING PICTURE MANAGER

Microsoft Office Picture Manager is a very useful tool to help improve the quality of photos submitted for warranty consideration.

Microsoft Office Picture Manager



While the Picture Manager program cannot correct blurry, out-of-focus pictures, it can adjust pictures for brightness, contrast, and color, helping to reveal details. It can also crop or resize digital photo files so that they can be submitted for warranty claim consideration.

  • To use this program on your PC, select Start > Programs > Microsoft Office > Microsoft Office Tools > Microsoft Office Picture Manager.
  • If the above instruction does not lead you to the Picture Manager program, select Start > Search. Under Search for Folders or Files, type “Picture Manager” in the Search window, then click on Search Now.
  • To create a shortcut to open Microsoft Picture Manager from your desktop, go to Start > Programs > Microsoft Office >Microsoft Office Tools > Microsoft Picture Manager >, then right-click and choose Create Shortcut. The shortcut icon and title will appear below the original Microsoft Picture Manager icon and title. Left-click and hold on the shortcut icon and drag it to the desktop. Once there, if you wish to change its name, right-click on the icon and select Rename.
  • To open and edit photos directly from Microsoft Picture Manager, right-click on any jpg picture file, then move your cursor to Open with.

Another window will open listing Microsoft Office Picture Manager and other programs. Do not click on Picture Manager, but instead scroll down the list, then click on Choose Program.

Another window will open, with Picture Manager already selected. Check the open box next to Always use the selected program to open this kind of file; this will make Picture Manager your default picture management program.

NOTE: The next time you click on a JPEG photo, it will automatically open in the Picture Manager program.

Correction Example #1: Photo is too dark

In Picture Manager, select Edit/Edit Pictures > Edit Using These Tools/Brightness and Contrast. Use the sliding scales to adjust the photo to the brightness and contrast that best reveal the fault.

Edit Using These Tools/Brightness and Contrast



Before Picture Manager correction:

Before Picture Manager correction



After Picture Manager correction:

After Picture Manager correction



Correction Example #2: Photo size is too large

For maximum clarity, the file size for each photo must be between 500 kb and 10,000 kb (10 mb). ZIPcompressed files are not acceptable. Photo file sizes over 10,000 kb (10 mb) cannot be accepted by the American Honda

Warranty department.

To reduce a picture’s file size, open Picture Manager. Select the photo to be reduced, then click on Edit Pictures > Resize > Percentage of original width x height, then click on the down arrow to reduce its percentage (%) size.

View the pixel count change in Size Setting Summary, which displays the photo’s Original size and its New size. NOTE: The % function changes the pixels per inch, so a photo’s size should be reduced only enough to meet the maximum file size requirement. For example, a 10% reduction in pixels per inch will reduce a photo’s size and its resolution by almost 50%.

Resize > Percentage of original width x height



END
