NHTSA Campaign Number: 18V663
Manufacturer Honda (American Honda Motor Co.)
Components STEERING
Potential Number of Units Affected 54
Magnet Becomes Dislodged Reducing Steering Ability
The unintended steering input reduces vehicle maneuverability and increases the risk of a crash.
Summary
Honda (American Honda Motor Co.) is recalling certain 2017-2018 Honda Civic and CR-V vehicles. The magnet that controls the torque sensor output signal for the electronic power steering system may not be properly secured, allowing the magnet to become dislodged. During a full lock turn, the dislodged magnet may cause steering assist to be applied in the opposite direction.
Remedy
Honda will notify owners, and dealers will replace the steering gearbox assembly, free of charge. The recall is expected to begin November 5, 2018. Owners may contact Honda customer service at 1-888-234-2138. Honda’s numbers for this recall are C2N, P2O.
Notes
Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.
Check if your Honda has a Recall
Service Bulletin
A18-102
September 28, 2018
Version 1
Safety Recall: 2017-18 Civic: Steering Gearbox
AFFECTED VEHICLES
| Year | Model | Trim | VIN Range |
| 2017-18 | Civic Coupe | ALL | Check the iN VIN status for eligibility. |
| 2017-18 | Civic Sedan | ALL | Check the iN VIN status for eligibility. |
| 2017-18 | Civic Hatch (Except Type-R) | ALL | Check the iN VIN status for eligibility. |
BACKGROUND
Due to incorrect production of the steering gearbox torque sensor, the torque sensor magnet may shift from its normal position inside the gearbox. A shifted sensor magnet may cause the steering to move left or right unexpectedly, increasing the risk of a crash.
CUSTOMER NOTIFICATION
Owners of affected vehicles will be sent a notification of this campaign.
Do an iN VIN status inquiry to make sure the vehicle is shown as eligible.
Some vehicles affected by this campaign may be in your new or used vehicle inventory.
Failure to repair a vehicle subject to a recall or campaign may subject your dealership to claims or lawsuits from the customer or anyone else harmed as a result of such failure. To see if a vehicle in inventory is affected by this safety recall, do a VIN status inquiry before selling it.
CORRECTIVE ACTION
Replace the steering gearbox. Then, do a four-wheel alignment, followed by the steering angle neutral position learning procedure.
WARRANTY CLAIM INFORMATION
| Operation Number | Description | Flat Rate Time | Defect Code | Symptom Code | Template ID | Failed Part Number |
| 5131L8 | Replace steering gearbox. (Includes alignment and steering angle neutral position learning 2-door Si models only) | 2.7 hrs | 6KS00 | C2N00 | A18102A | 53620-TBJ-A11 |
| 5131L8 | Replace steering gearbox. (Includes alignment and steering angle neutral position learning 2-door LX models only) | 2.7 hrs | 6KS00 | C2N00 | A18102B | 53620-TBJ-A11 |
| 5131L8 | Replace steering gearbox. (Includes alignment and steering angle neutral position learning 4-door LX models only) | 2.7 hrs | 6KS00 | C2N00 | A18102C | 53620-TBJ-A11 |
| 5131L8 | Replace steering gearbox. (Includes alignment and steering angle neutral position learning 4-door EX models only) | 2.7 hrs | 6KS00 | C2N00 | A18102D | 53620-TBJ-A11 |
| 5131L8 | Replace steering gearbox. (Includes alignment and steering angle neutral position learning 4-door EX-T. EX-L models only) | 2.7 hrs | 6KS00 | C2N00 | A18102E | 53620-TBJ-A11 |
| 5131L8 | Replace steering gearbox. (Includes alignment and steering angle neutral position learning 5-door EX. EX-L models only) | 2.7 hrs | 6KS00 | C2N00 | A18102F | 53620-TBJ-A11 |
| 5131L8 | Replace steering gearbox. (Includes alignment and steering angle neutral position learning 5-door LX with Honda Sensing models only) | 2.7 hrs | 6KS00 | C2N00 | A18102G | 53620-TBJ-A11 |
| 5131L8 | Replace steering gearbox. (Includes alignment and steering angle neutral position learning 5-door LX models only) | 2.7 hrs | 6KS00 | C2N00 | A18102H | 53620-TBJ-A11 |
Skill Level: Repair Technician
PARTS INFORMATION
| Part Name | Part Number | Quantity |
| Steering Gearbox (2-Door Si) | 53620-TBJ-A11 | 1 |

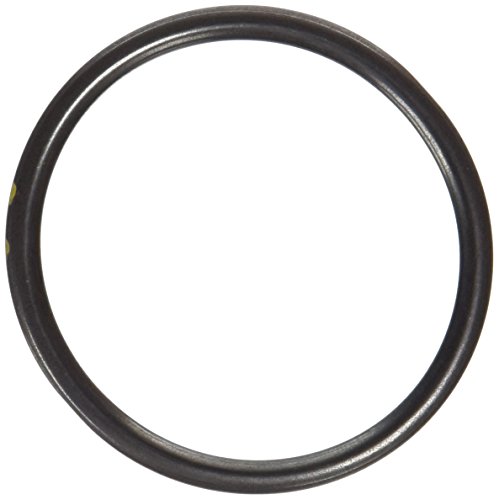

| Gasket, A Pipe | 18303-T2B-A01  |
1 |

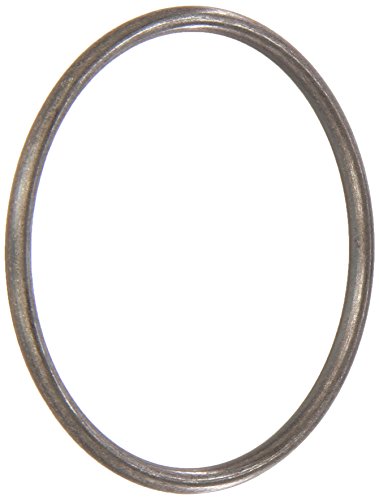

| Gasket, A Pipe | 18302-SP0-003 |
1 |
| Bolt (14 mm x 58 mm) | 90107-TBA-A00 | 1 |
| Bolt (14 mm x 73 mm) | 90108-TBA-A00 | 2 |

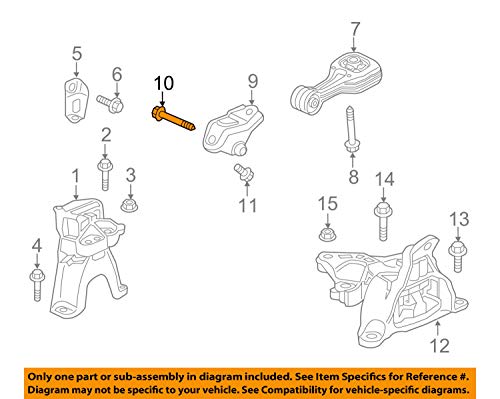

| Bolt | 90108-TL1-G00 |
1 |
| Bolt- Washer (10 mm x 25 mm) | 90159-TBA-A00 |
6 |
| Flange Bolt (14 mm x 90 mm) | 90179-SDA-A00 | 4 |
| Flange Bolt (14 mm x 35 mm) | 90181-TBA-A00 |
2 |
| Flange Bolt (10 mm x 65 mm) | 90210-TBA-A01 | 2 |
| Nut (10 mm ) | 90212-SA5-003 |
8 |
| Nut (12 mm) | 90215-SB0-003 |
6 |
| Hex Nut (12 mm) | 94030-12280 |
2 |
| Split Pin (3 mm x 22 mm) | 94201-30220 |
2 |
| Part Name | Part Number | Quantity |
| Steering Gearbox (2-Door LX) | 53650-TBG-A03 | 1 |
| Gasket, A Pipe | 18303-T2B-A01 |
1 |
| Gasket, A Pipe | 18302-SP0-003 |
1 |
| Bolt (14 mm x 58 mm) | 90107-TBA-A00 | 1 |
| Bolt (14 mm x 73 mm) | 90108-TBA-A00 | 2 |
| Bolt | 90108-TL1-G00 |
1 |
| Bolt- Washer (10 mm x 25 mm) | 90159-TBA-A00 |
6 |
| Flange Bolt (14 mm x 90 mm) | 90179-SDA-A00 | 4 |
| Flange Bolt (14 mm x 35 mm) | 90181-TBA-A00 |
2 |
| Flange Bolt (10 mm x 65 mm) | 90210-TBA-A01 | 2 |
| Nut (10 mm ) | 90212-SA5-003 |
8 |
| Nut (12 mm) | 90215-SB0-003 |
6 |
| Hex Nut (12 mm) | 94030-12280 |
2 |
| Split Pin (3 mm x 22 mm) | 94201-30220 |
2 |
| Part Name | Part Number | Quantity |
| Steering Gearbox (4-Door LX) | 53650-TBA-A02 | 1 |
| Gasket, A Pipe | 18303-T2B-A01 |
1 |
| Gasket, A Pipe | 18302-SP0-003 |
1 |
| Bolt (14 mm x 58 mm) | 90107-TBA-A00 | 1 |
| Bolt (14 mm x 73 mm) | 90108-TBA-A00 | 2 |
| Bolt | 90108-TL1-G00 |
1 |
| Bolt- Washer (10 mm x 25 mm) | 90159-TBA-A00 |
6 |
| Flange Bolt (14 mm x 90 mm) | 90179-SDA-A00 | 4 |
| Flange Bolt (14 mm x 35 mm) | 90181-TBA-A00 |
2 |
| Flange Bolt (10 mm x 65 mm) | 90210-TBA-A01 | 2 |
| Nut (10 mm ) | 90212-SA5-003 |
8 |
| Nut (12 mm) | 90215-SB0-003 |
6 |
| Hex Nut (12 mm) | 94030-12280 |
2 |
| Split Pin (3 mm x 22 mm) | 94201-30220 |
2 |
| Part Name | Part Number | Quantity |
| Steering Gearbox (4-Door EX) | 53650-TBA-A22 | 1 |
| Gasket, A Pipe | 18303-T2B-A01 |
1 |
| Gasket, A Pipe | 18302-SP0-003 |
1 |
| Bolt (14 mm x 58 mm) | 90107-TBA-A00 | 1 |
| Bolt (14 mm x 73 mm) | 90108-TBA-A00 | 2 |
| Bolt | 90108-TL1-G00 |
1 |
| Bolt- Washer (10 mm x 25 mm) | 90159-TBA-A00 |
6 |
| Flange Bolt (14 mm x 90 mm) | 90179-SDA-A00 | 4 |
| Flange Bolt (14 mm x 35 mm) | 90181-TBA-A00 |
2 |
| Flange Bolt (10 mm x 65 mm) | 90210-TBA-A01 | 2 |
| Nut (10 mm ) | 90212-SA5-003 |
8 |
| Nut (12 mm) | 90215-SB0-003 |
6 |
| Hex Nut (12 mm) | 94030-12280 |
2 |
| Split Pin (3 mm x 22 mm) | 94201-30220 |
2 |
| Part Name | Part Number | Quantity |
| Steering Gearbox (4-Door EX-T, EX-L) | 53650-TBC-A02 | 1 |
| Gasket, A Pipe | 18303-T2B-A01 |
1 |
| Gasket, A Pipe | 18302-SP0-003 |
1 |
| Bolt (14 mm x 58 mm) | 90107-TBA-A00 | 1 |
| Bolt (14 mm x 73 mm) | 90108-TBA-A00 | 2 |
| Bolt | 90108-TL1-G00 |
1 |
| Bolt- Washer (10 mm x 25 mm) | 90159-TBA-A00 |
6 |
| Flange Bolt (14 mm x 90 mm) | 90179-SDA-A00 | 4 |
| Flange Bolt (14 mm x 35 mm) | 90181-TBA-A00 |
2 |
| Flange Bolt (10 mm x 65 mm) | 90210-TBA-A01 | 2 |
| Nut (10 mm ) | 90212-SA5-003 |
8 |
| Nut (12 mm) | 90215-SB0-003 |
6 |
| Hex Nut (12 mm) | 94030-12280 |
2 |
| Split Pin (3 mm x 22 mm) | 94201-30220 |
2 |
| Part Name | Part Number | Quantity |
| Steering Gearbox (5-Door EX, EX-L) | 53620-TGG-A41 | 1 |
| Gasket, A Pipe | 18303-T2B-A01 |
1 |
| Gasket, A Pipe | 18302-SP0-003 |
1 |
| Bolt (14 mm x 58 mm) | 90107-TBA-A00 | 1 |
| Bolt (14 mm x 73 mm) | 90108-TBA-A00 | 2 |
| Bolt | 90108-TL1-G00 |
1 |
| Bolt- Washer (10 mm x 25 mm) | 90159-TBA-A00 |
6 |
| Flange Bolt (14 mm x 90 mm) | 90179-SDA-A00 | 4 |
| Flange Bolt (14 mm x 35 mm) | 90181-TBA-A00 |
2 |
| Flange Bolt (10 mm x 65 mm) | 90210-TBA-A01 | 2 |
| Nut (10 mm ) | 90212-SA5-003 |
8 |
| Nut (12 mm) | 90215-SB0-003 |
6 |
| Hex Nut (12 mm) | 94030-12280 |
2 |
| Split Pin (3 mm x 22 mm) | 94201-30220 |
2 |
Civic 5-Door LX With Honda Sensing
| Part Name | Part Number | Quantity |
| Steering Gearbox ( 5-Door LX) | 53620-TGG-A52 | 1 |
| Gasket, A Pipe | 18303-T2B-A01 |
1 |
| Gasket, A Pipe | 18302-SP0-003 |
1 |
| Bolt (14 mm x 58 mm) | 90107-TBA-A00 | 1 |
| Bolt (14 mm x 73 mm) | 90108-TBA-A00 | 2 |
| Bolt | 90108-TL1-G00 |
1 |
| Bolt- Washer (10 mm x 25 mm) | 90159-TBA-A00 |
6 |
| Flange Bolt (14 mm x 90 mm) | 90179-SDA-A00 | 4 |
| Flange Bolt (14 mm x 35 mm) | 90181-TBA-A00 |
2 |
| Flange Bolt (10 mm x 65 mm) | 90210-TBA-A01 | 2 |
| Nut (10 mm ) | 90212-SA5-003 |
8 |
| Nut (12 mm) | 90215-SB0-003 |
6 |
| Hex Nut (12 mm) | 94030-12280 |
2 |
| Split Pin (3 mm x 22 mm) | 94201-30220 |
2 |
Civic 5-Door LX without Honda Sensing
| Part Name | Part Number | Quantity |
| Steering Gearbox (5-Door LX) | 53620-TGG-A22 | 1 |
| Gasket, A Pipe | 18303-T2B-A01 |
1 |
| Gasket, A Pipe | 18302-SP0-003 |
1 |
| Bolt (14 mm x 58 mm) | 90107-TBA-A00 | 1 |
| Bolt (14 mm x 73 mm) | 90108-TBA-A00 | 2 |
| Bolt | 90108-TL1-G00 |
1 |
| Bolt- Washer (10 mm x 25 mm) | 90159-TBA-A00 |
6 |
| Flange Bolt (14 mm x 90 mm) | 90179-SDA-A00 | 4 |
| Flange Bolt (14 mm x 35 mm) | 90181-TBA-A00 |
2 |
| Flange Bolt (10 mm x 65 mm) | 90210-TBA-A01 | 2 |
| Nut (10 mm ) | 90212-SA5-003 |
8 |
| Nut (12 mm) | 90215-SB0-003 |
6 |
| Hex Nut (12 mm) | 94030-12280 |
2 |
| Split Pin (3 mm x 22 mm) | 94201-30220 |
2 |
TOOL INFORMATION
| Tool Name | Tool Number | Quantity |
| Subframe Adapter | VSB02C000016 | 1 |
REPAIR PROCEDURE
NOTE
For more information about the procedures listed below, refer to the service information.
- Set the steering column to the center tilt position and center telescopic position. Use the steering wheel holder tool to keep in place.
- Raise the vehicle on a lift.
- Remove the front wheels.
- Disconnect the steering joint.
- Disconnect the tie-rod end ball joints on both sides of the vehicle.
- Remove the engine undercover.
- Disconnect the EPS subharness, and remove the connectors from the harness clips.
- Disconnect both sides of the stabilizer link from the stabilizer bar.
- Disconnect both lower arm ball joints.
- Vehicles with 1.5 L engine: Remove the intake air resonator.
- Remove exhaust pipe A.
- Remove the torque rod mounting bolt.
- Remove the front brace.
- Remove both front lower arm mounting bolts from the body.
- Set the subframe adapter on a transmission jack, line up the slots in the arms with the bolt holes on the corner of the jack base, and tighten the bolts.
- Attach the subframe adapter to the front subframe, and remove the bolts holding the subframe.
- Using the transmission jack, lower the front subframe until it drops from the body.
NOTE
Do not lower the front subframe more than required.
- Remove the steering gearbox mounting bolt and stiffener.
- Remove the heat shield, harness, and pinion shaft grommet.
INSTALLATION
NOTE
During the assembly process, replace all required parts.
- Install the pinion shaft grommet.
NOTICE
Make sure to align the cutout portion with the lug portion. The grommet must not have a gap at the mating surface of the grommet and torque sensor.
- Install the harnesses.
- Loosely install the heat shield, and tighten the mounting bolts to the specified torque in the sequence shown.
- Loosely install the new steering gearbox stiffener and mounting bolts.
- Tighten the steering gearbox mounting bolts and the stiffener mounting bolts to the specified torque in the sequence shown.
- Install the front lower arm mounting bolt on both sides of the body.
- Install the front brace.
- Loosely install the torque rod mounting bolt.
- Release the subframe jack.
- Tighten the engine and transmission mounts to the specified torque.
- Install exhaust pipe A with new gaskets.
- Vehicles with 1.5 liter engine: Install the intake air resonator.
- Connect the lower arm ball joints on both sides.
- Connect the stabilizer link to the stabilizer bar.
- Connect the EPS subharness, and install the harness clip.
- Install the engine undercover.
- Connect the tie-rod end ball joints on both sides.
- Connect the steering joint.
- Remove the steering wheel holder tool.
- Install the front wheels.
- With the tires raised off the ground, check for the following symptoms on the steering gearbox by turning the steering wheel fully to the right and left several times. If you hear any of the symptoms listed below, check for a probable cause.
- Check these items with the vehicle on the ground:
- Start the engine, let it idle, and turn the steering wheel from lock to lock several times.
- Make sure the EPS indicator does not come on.
- Check the power steering assist.
- Confirm the steering wheel is centered. If not centered, check for proper engagement and/or alignment of the steering column coupler and steering gearbox spline.
- Do a four-wheel alignment.
- Do the steering angle neutral position learning procedure.
END
A18-102
September 28, 2018
Version 1
https://static.nhtsa.gov/odi/rcl/2018/RCRIT-18V663-5024.pdf
Loading...
Reload document
Open in new tab
Manufacturer Notices(to Dealers,etc) – September 28, 2018 Subject 2017-18 Civic and CR-V EPS Gearbox Replacement Stop Sale & Safety Recalls
September 28, 2018
https://static.nhtsa.gov/odi/rcl/2018/RCMN-18V663-1002.pdf
Loading...
DEFECT INFORMATION REPORT
https://static.nhtsa.gov/odi/rcl/2018/RMISC-18V663-5289.pdf
Loading...
Recall Acknowledgement
October 15, 2018
https://static.nhtsa.gov/odi/rcl/2018/RCAK-18V663-7229.pdf
Loading...
Recalls Documents
https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=18V663&docType=RCL
Bestseller No. 1
class="aawp-product__thumb">
LAUNCH X431 PRO3S+Smartlink HD Heavy Duty Truck Scanner,2024 Top Diesel&Gasoline Bidirectional Diagnostic Scan Tool with J2534 Reprogramming,Topology Map,60+Service,ECU Coding,CANFD &DOIP,Free Update
- 【2024 NEWEST LAUNCH 1st Advanced Scan Tool Compatible With 12V&24V Vehicles】Design for Passenger&Commercial Vehicles 2 in1,work for Cars/Trucks/buses/trailers/excavators/diesel engine/pick-up/etc.
- 【J2534 Reprogramming with Smartlink C】Advanced OEM J2534 reprogramming,Helps access direct data online, replace existing software/firmware in ECU,program new ECUs and fix software-controlled issue.
- 【Over 60 Service Reset Functions + Bi-Directional + ECU Coding 】This scan tool can support ECU Coding,60+ reset service functions like SAS/EPB/TPMS/DPF/Oil/Brake/ABS Bleed, Injector coding, etc.
- 【2024 BEST Advanced Hardware & All Systems Diagnosis+Topology Display 】Support All systems Diagnostic including ENG, AT, ECM, TCM, ABS, SRS, BCM, BMS, TPMS, SAS, Fuel System, Light System and more.
- 【Wider Vehicle Coverage of 12V & 24V Vehicles + 24 Languages】LAUNCH X431 PRO3S+SMARTLINK HD automotive scanner is ALL-IN-ONE Scan Tool for 12V cars and 24V Heavy-duty trucks support CANFD & DOIP.
Bestseller No. 2
LAUNCH X431 PRO5 Diagnostic Scanner, J2534 Reprogramming Tool with ECU Coding, Upgrade of X431 PRO3/V+, 50+ Service, Intelligent Diagnostics, Guided Functions, CAN FD/DoIP, 2-Year Free Update
- 👍[New & Outstanding X431 PRO5 Scanner] LAUNCH X431 PRO5 scan tool, upgrade of LAUNCH X431 PRO3 & X431 V+ PRO, configures a SmartBox 3.0 VCI (J2534/DoIP/CAN FD compliant) that performs online programming for BMW & Benz models as OEM level. More powerful features: Online Coding for Porsche/Audi, Heavy-duty Truck Diagnostics, VAG Guided Functions, 50+ Services, etc., bring ease & efficiency. Powerful software even covers online diagnostics for FCA cars & newer model data.
- [J2534 Programming with Smartbox3.0] If you’re seeking all-in-one solutions for car ECU tuning needs, LAUNCH X431 PRO5 programming tool is ready to work for you. Support online programming for BMW&Benz and hold exclusive programming backup/restoration. Come with a Smartbox 3.0 device of J2534 standard and pair with a PC to download OEM software to upgrade the ECU software, which maximizes the vehicle performance and minimizes diagnostic problems.
- [ECU Coding Customizes All You Want] With top of the tech instruction and vehicle data, LAUNCH X431 PRO5 diagnostic scanner performs well in ECU Coding and makes everything easier 1) recode adaptive data after ECU replacement 2) personalization/retrofit to improve car comfort: deactivate auto start-stop or change interior lights 3) coding data backup/reserve 4) online coding for BMW/Benz/Porsche/VW/Skoda/Seat 5) online matching/calibration for VW/for Audi, etc.
- [Huge Vehicle Software Database] LAUNCH scanner PRO5 can be nominated as a powerful troubleshooter for 99% of post 1996-automobiles. Provide abundant exclusive functions for effortless diagnostics: Benz/BMW Data Backup/Restoration; Benz/BMW Manual Mode Programming; Benz SCN Coding/Variant Coding; BMW Coding (with newer data to 2022.03); AutoAuth for FCA SGW(2018 later); Various Online Coding Data for VW/for Audi, etc. 2-Year free updating will keep renewing the data for more vehicles.
- [AutoAuth Access & 50+ Services] Partnered AutoAuth FCA US, LAUNCH scanner can directly login to the AutoAuth account and secure check (reading DTC, active test, reset functions, etc.) for FCA vehicles. 50+ services that are needed for repair shops have been packed in X431 PRO5 auto scanner, such as Hot functions (Oil Reset, EPB Reset, SAS Reset, ABS Bleeding, etc.) and Comprehensive functions (High Voltage Battery Diagnostics, Transport Mode),
SaleBestseller No. 3
LAUNCH X431 PADVII Elite, ECU Reprogramming Tool, Online Coding, J2534/RP1210/D-PDU/Do-IP/CANFD, Topology Map Diagnostic Scanner, FCA SGW, 60+ Reset, Active Test, 2 Years Free Update Car Scanner
- [LAUNCH scanner PAD VII, Top 1 of X431 Scan Tool] Upgraded from the LAUNCH X431 PRO5/X431 V+5.0/XTOOL D9S, inherits the excellent functions of its predecessors and optimizes them in efficiency and wider compatibility. 1)ECU programming with backup and restore capabilities for over 30 car brands. 2)ECU/SCN coding. 3)Support J2534, RP1210, D-PDU, Do-IP, and CANFD protocols. 4)With topology mapping, over 60 Reset, guided function, highest hardware configuration, cover 99.99% of cars worldwide.
- [ECU Programming& Coding, Turn Complexity into Simplicity] The LAUNCH X431 PAD VII ELITE surpasses most competitors with its ECU programming capabilities for over 30 car brands. 1)Program the blank/used ECUs, capable of rep/la//cing the exist software & firmware and programming new ECUs. 2)Upgrade the ECU software version. 3)The diagnostic scanner offers backup and restore data from original ECUs, not found in other tools. 5)Coding features: Recode ECU Data, Personalization, and loads of more.
- [UNMATCHED COVERAGE, 12/24V Passenger & Commercial vehicles] 2024 LAUNCH diagnostic tool works on 200+ car brands(1987-2024), 1)FCA Secured Gateway Access (SGW) Authorization "OE-level coverage for Asian, Euro, Domestic Cars. 2)This advanced launch scanner supports J2534, RP1210/D-PDU protocols for heavy-duty vehicles, Do-IP for BMW E/F and Land Rover/Jaguar models, and CANFD for new GM models. ✔With frequent updates and optimizations allow LAUNCH X431 PADVII to cover more vehicles.
- [Intelligent Diagnostics, 200% Efficiency] LAUNCH X431 PAD VII ①Topology mapping feature visually checks DTCs and All-system communication status.②Pin Detection allow detecting DLC pins voltage and accessing protocol types to troubleshoot DLC port.③ Guided Function for V.A.G vehicles offer on-screen prompts for accurate diagnostics, simplifying the process.④Provide Repair tips, DTC Analysis, Component Measurement, and Relevant Cases to help diagnosis and repair efficiency to the greatest extent.
- [60+ Reset Functions, Constantly Updating] LAUNCH X431 PADII diagnostic tool has packed almost all tasks of a professional automotive scan tool. It can perform Oil Reset, EPB, SAS Calibration, Power Balance, Idle Relearn, ABS/Window Initialization, HVAC Calibration, etc. ✔Full bidirectional scan tool to quickly locate the fault, identifies problems five times faster than traditional methods. like EVAP Tests, A/C Clutch Test, Lane Keeping Assist, window, door, sunroof test etc.
Bestseller No. 4
LAUNCH X431 PAD VII Elite, 2024 Newest Top J2534 Reprogramming Tool, Intelligent Topology Map Bi-Directional Diagnostic Scanner, ECU Coding, 2 Years Free Update, 60+ Services, Upgraded of X431 PRO5
- 💗💗【WARM NOTICE】✅The "X431 PADVII online programming activation method" & the instruction on how to use VPN to bypass IP restrictions to gain access to online programming feature for more models, not just for Benz & BMW in the U.S. is available if you need; ✅LAUNCH Tech. USA is just one of the dealers located in America, so they won't be responsible for Amazon products. Pls con-tact us If you have any problems.
- 🥇【LAUNCH X431 PAD VII ELITE, 2024 Top Diagnostic Scanner】 The latest all-around scan tool, upgraded from LAUNCH X431 PRO5/PADIII/V+ 4.0 and rival OEM car scanners. High-end ECU programming backup/restore for 30+ car brands, ECU/SCN coding, J2534/RP1210/D-PDU/Do-IP/CANFD, topology mapping, 60+ service functions, guided functions, highest hardware configuration … with 99.99% worldwide car coverage. LAUNCH X431 PAD VII ELITE is a worthwhile investment for repair shops and mechanics.
- 【Huge-Upgraded ECU Programming & Coding】 Beyond the reach of most competitors, LAUNCH X431 PAD VII ELITE features ECU Programming working on upmost 30+ car brands: 1) Backup/Restore data from original ECUs, you won't find this in any other tools; 2) Programming offline or online, manual or automatic to meet more needs; 3) R-etrofit, e.g. replace halogen lamp. 4) ECU Upgrade, e.g for Fuel quality defect firmware. Coding features: Recode ECU Data, Personalization, and loads of more.
- 【LAUNCH X431 PAD VII ELITE, 60+ Services & Topology】 LAUNCH X431 PAD VII ELITE bidirectional scan tool has 60+ service functions, like Oil Reset/ABS Bleeding/Injector Coding… to win more business. Topology mapping checks DTCs and all-system communication status visually in LAUNCH X431 PAD VII ELITE top scanner. The actuation test detects problems 5X faster than tearing autoparts apart. Multiple protocols: J2534, RP1210/D-PDU (for HD cars), Do-IP (BMWs E/F, Land Rover/Jaguar), CANFD (new GM).
- 【Intelligent Diagnose & Guided Functions】LAUNCH X431 PAD VII ELITE scan tool has Intelligent Diagnose to free you from tedious works: easily get VIN data, guide you to vehicle information page without menu selection, and display all diagnostic records. Guided Function (for V.A.G) allows on-screen prompts for proper diagnostics, simple & convenient. Pin Detection allows detecting DLC pins voltage and accessing protocol types to troubleshoot your DLC port.
Bestseller No. 5
MUCAR OBD2 Scanner, Car Scanner Diagnostic Tool with 6 Systems (ABS SRS ECM TCM BCM TPMS) and 7 Reset Services (Oil EPB SAS ETS TPMS ABS DF), 5" HD Touchscreen and Update Free Lifetime
- 【Wifi Upgrade】- After you receive the OBD2 Scanner Diagnostic Tool for better product experience as well as car diagnositic, please connect to wifi/phone hotspot and accept or take the initiative to update APP operating system and car brand diagnostic software.
- 【Professional 6 System Diagnosis】- This OBD2 scanner has the most commonly system: ABS, SRS, Transmission, Engine, BCM and TPMS. With its professional diagnostic services you will have the ability to read codes and make sure all safety measures are in place. Not only will you receive the code definition, but you will also be able to view possible causes and reported fixes for specific vehicle codes.
- 【7 Most Useful Reset Services】- You will have 7 additional fixed resets for lifetime free use: Oil/EPB/SAS/ETS/ABS Bleeding/Filte/TPMS. If you have recently changed or installed new equipment on your vehicles such as an ABS module or master cylinder, the ABS bleeding function can help remove air by performing an auto bleed. Moreover, the code reader comes with multiple maintenance features.
- 【Enhanced OBD2 Functions】- This car scanner can support all 10 OBD2 test modes. Read Codes, Erase Codes, MIL Fault Indicator Light, Live Data, EVAP System Test, On-Board Monitor Test, View Freeze Frame, O2 Sensor Test, Vehicle Info, I/M Readiness, DTC Code Look-up, perform oxygen sensor tests and carbon canister tests to ensure your vehicle is ready for all emission services.
- 【Large HD Touchscreen and 4 in 1 Live Data Display】- This car diagnostic scanner is equipped with a 5" color HD touchscreen: Compared with other screens, the displayed data and charts will be clearer. It shows live data of each control module by text or graphs, up to 4 parameters can be displayed at the same time.
Bestseller No. 6
LAUNCH X431 PRO 5 Scan Tool: 2024 J2534 Reprogramming Tool, ECU Online Coding, Topology Mapping, Upgraded of X431 V+, Bi-Directional Diagnostic Scanner, with SmartBox 3.0 CANFD & DOIP, 2 Years Update
- 【Why Choose LAUNCH scanner X431 PRO5】It is the original LAUNCH X431 scan tool, the 2024 upgraded version of PROS V+, X431 PRO3 and V+ 4.0, which is a worthwhile investment for repair shops and mechanics. LAUNCH X431 PRO 5, all is set to OE-level standards with 1) J2534 ECU Programming & 50+ service same as PAD Series; 2) Bi-directional control + All system diagnostics as Snap-on scanner; 3) Online Coding functions directly connect to OEM server; 4) Top-notch Topology Mapping function
- 【J2534 Programming with Smart Box 3.0】 What is super SmartBox 3.0 VCI? Worth 1000$, Smart Box 3.0 is backed on new ISO9141/J1850/SAE J2610/CANFD/DOIP, which enables you to run 14x quicker data trans and advanced OEM J2534 reprogramming for B-MW, Ben-z, F-ord, Jaguar, Land Rover, GW, Volvo, etc. (please reach to us for more details). It also serves as a wireless VCI allowing the vehicle to transmit data to the diagnostic tablet without a physical connection.
- 【New Released Topology Mapping】Update your X431 PRO 5 to V 7.03.014 to gain Topology Mapping function. This advanced feature, typically found only on tools costing over $3000, provides a comprehensive view of a vehicle's data bus configurations, improving repair efficiency by up to 90%. With just one click, you can gain insights into the layout of a vehicle's system and clear any troubles. Compatibility with your vehicle's brand should be verified by checking the VIN before purchasing.
- 【LAUNCH X431 PRO 5 with Powerful 50+ Services】Especially designed for pro mechanics and big repair shops, Launch X431 scanner PRO5 is equipped with 50+ hot reset functions for 150 car makes which same as X431 PAD serious. Easy to navigate and help you do ABS Bleeding, TPMS Reset, Oil Reset, EPB Reset, Suspension, BMS, Injector Coding, IMMO, Power balance, Throttle Matching and more. 🚩Notice: we offer 2-year f ree update while other brands generally 1 year.
- 【A-ctive Test + ECU Coding】Come with appealing bi-directional control to troubleshoot all possible problems for full systems within 5 min.This LAUNCH X431 PRO scanner even develops all practical functions needed by all technicians:1) ECU Coding for replacing, match, relearn, recode new ECU modules;2) Online Coding for B-MW, VW, Porsche, Ben-z to surf OEM data;3) VAG Guided functions ease complex issues;4) Personalization & ADAS improving car performance and driving safety.
SaleBestseller No. 7
LAUNCH X431 PRO5, J2534 ECU Programmming Tool, Bidirectional Automotive Scanner, DoIP, CANFD, Diagnostic Scanner Scan Tools, AutoAuth, Renault RGW, Online Coding, 50 Hot Services, DC9-36V Trucks
- [ECU Online Programming] Boom your business to new heights! Streamline your programming/rewriting/coding/matching of new ECUs with Online Programming from LAUNCH scanner X431 PRO5 without using OE scan tools: 1) backup/restore programing data; 2) download programing files directly from OE server to upgrade software; 3) support multiple ECU modules while remaining fast & accurate; 4) match component of control modules after repair or replacement. NOTE: Online programing is only for Ben.z&BM.W.
- [J2534 Reprogramming Tool] The included SmartBox 3.0 supports J2534/CAN-FD/DoIP & DC9-36V (for 24V HD vehicles) protocols allowing LAUNCH PRO5 to cover more car types than ever. It also serves as a J2534-PassThru interface for manufacturer-specific ECU programming of more brands such as Toyota, Honda, Volvo, V-W, G.M, etc. provided that you’ve got OE-authorized programming software. NOTE: Message us anytime to get the J2534 programming detailed steps for your easy work.
- [10+ High-End Functions] PRO5 scan tool merges 10+ high-end functions into one inspiring solution to greatly improve your workbench efficiency: 1) ECU coding: replace/match/re-learn/re-code new modules; 2) Online coding refreshes hidden functions/customizes OE settings; 3) VAG guided functions simplify complex VAG diagnostics; 4) active test/personalization/ADAS calibration/BM.W modification and more, constantly growing. This diagnostic scanner can save you loads of repair effort.
- [Topology & More for 200% Efficiency] This LAUNCH scanner added Topology Module Mapping, offering at-a-glance view of the module communication structure that is color-coded, and direct access to all system diagnostics marked with fault codes. One-station solution: all systems scan & all DTCs clearing, graphic live data (can be saved/replayed/screenshot), auto-generated test report, step-by-step guidance, DTC analysis, relevant cases, repair material & tips … all for your 200% efficient use.
- [99% Car Coverage] LAUNCH scanner PRO5 works across 99% major cars on market (160+ brands, -2023). It can fully access FCA SGW-equipped vehicles via verified AutoAuth (compatible with 2017+ Chrysler/Dodge/Jeep/AlfaRomeo/Fiat …), and support Renault diagnostics with RGW-unloc.king device & software (need separate purchase) to perform active tests/programming/coding/anti-theft/initialization, etc. (message us for guidance). With optional software & adaptors, you can even diagnose DC9-36V trucks.
Bestseller No. 8
Bidirectional Scan Tool VDIAGTOOL VD70: 2024 Newest Automotive Diagnostic Scanner with 3 Years Updates, ECU Coding, 36+ Resets, OE Full System Scan, CAN FD & DoIP, Key Programming, Crankshaft Relearn
- 【2024 NEWEST IN-DEPTH AUTO DIAGNOSTIC SCANNER】VDIAGTOOL VD70 diagnostic tool comes with all the capabilities that automotive technicians need for daily repair at an affordable price. You will enjoy its functions that only professional obd2 scanner diagnostic tools have, such as ✅OE All Systems Diagnostics, ✅36+ Hot Services, ✅Bi-Directional Control, ✅ECU Coding, ✅Key Programming, etc. This professional-grade tool covers ✅3-Year F-ree Update, ✅8-In-One Data Graph, ✅CAN FD&DoIP Protocol(Upgraded).
- 【FULL BI-DIRECTIONAL CONTROLS/4000+ ACTIVE TESTS】VD70 bidirectional scan tool performs powerful Bi-directional Control, making it the most cost-effective tool by eliminating the need for multiple scanners. This feature allows commanding cars’ modules & receiving info from the ECU to perform active tests on individual components, including EVAP/ABS Motor Pump/Windows/Sunroof,etc, to locate fault causes & resolve issues. ⚠️Please check compatibility via vdiagtool2 @ outlook . c o m before purchase.
- 【36+ SPECIAL FUNCTIONS & ADVANCED ECU CODING】VD70 car scanner diagnostic tool covers 36+ comprehensive Services & Adaptation, Calibration, Initialization, Relearn, Match, including Oil Reset, EPB, SAS, BMS, Throttle, Injector Coding, ABS Bleed, Key Programming, TPMS, ABS Initialization, SWS Calibration, Idle Relearn, etc. VD70 scan tool does ECU coding capability (for VW/Audi/SKODA ONLY) to flash hidden features, disable annoying features & match replaced components. NOTE: NO ecu programming.
- 【KEY PROGRAMMING ABILITY BEAT OTHERS】 Compared to other scan tools at the same price that can only provide entry-level key programmer capabilities, VD70 performs superior, supporting a wider range of car models. It is a reliable key programmer tool offering functions like reading P*I*N c*ode, adding new keys(Fob/Remote/Smart), remote learning, etc. ⚠️The available key functions vary by model/car make, please check compatibility via vdiagtool2 @ outlook . c o m before purchase.
- 【OE All SYSTEMS DIAGNOSTICS & 8-IN-ONE DATA GRAPH】The VD70 auto diagnostic scanner, effectively covers all available vehicle systems like Engine, Trans, ABS, Airbag, Brake, Body, Chassis, etc to✅Read/Clear codes, ✅Provide ECU Info, ✅View Live Data Stream & 8-In-One graph, ✅Export Data as CSV, ✅Record & Playback Data, ✅View Freeze-frame, ✅Perform Active Tests & Services, bringing in-depth lever diagnostic & getting accurate diagnostic report to help you pinpoint the fault quickly.
Bestseller No. 9
2024 Newest FOXWELL Scanner NT809BT Bidirectional Scan Tool, All System Scanner for Car with 30+ Service Resets, Wireless Diagnostic Scanner for All Vehicles, Accurate Automotive Diagnostic Tools
- 【WHY IS FOXWELL NT809BT?】Who can refuse a full system tablet computer car diagnostic device that is affordable, comprehensive in functionality, easy to use, long-lasting in range, with lifelong technical support, and widely compatible with vehicle models? Do you know how much dollars it can save you? A penny saved is a penny earned. Owning it is good for your stool! A good horse of needs a good Spur. People are the same. Whether you are a beginner or a professional mechanic, take it home!
- 【EASY TO USE】🟠Simple operation interface that can be used on the touch screen even when wearing gloves. 🟠The 8in1 data flow display interface allows you to get key information from multiple perspectives. 🟠AUTOVIN allows devices to automatically perform tedious search steps, saving you time. 🟠The scratch resistant grip and the flat bracket on the back are convenient for use in any occasion. 🟠20M Wireless Bluetooth diagnosis allows you to get rid of tangled cables and move freely.
- 【PROFESSIONAL BIDIRECTIONAL SCAN TOOL】 The active test is widely equipped for car subsystems to help you directly access to the automobile's ECU to check the working status and functionality, allowing you to locate the fault parts more accurately. Including fuel injectors, coolant pumps, windows, windshield wipers…… 809BT supports 24 language switches and 108+models, as well as 10000+cars. It also supports printing multi-dimensional diagnostic reports, making the car status clear at a glance.
- 【The MOST COMMON 30+ CAR RESET FUNCTIONS】NT809BT car computer diagnostic tool can perform almost 99% of the tasks of professional automotive scanning tools, including injector coding, ABS bleeding, TPMS/EPB/SAS reset, Oil Reset, Crank Relearn, Battery Registration, Idle Relearn, etc. Free WIFI updates within 3 years, 2 years more than other products. You can continue to use it regardless of whether you choose to renew it after 3 years, but the software will not be updated.
- 【FACTORY-LEVEL All SYSTEM DIAGNOSTIC CAR SCANNER】This car diagnostic tool can scan all available car systems accurately and deeply. Support CAN-FD/CAN/KWP/DOIP Protocol, FCA Autoauth. It can also display battery data of all electronic control systems in the car and monitor battery voltage at any time. And it also supports OBD2 full function module, making code reading/clearing effortless. You can use it to check if your car is ready for annual testing through the I/M Readiness menu.
Bestseller No. 10
LAUNCH X431 PRO5 with Free J2534 ECU Reprogramming Tool for OEM Reprogramming and Diagnostics, 50+ Reset,OE-Level All Systems Bi-Directional Scanner for CANFD/DOIP/Heavy Duty Truck Scanner
- Featured with a brand-new upgrade system, X-431 PRO5 is newly designed for All Makes, All Models, and Full system diagnosis and assists the technician to make the vehicle diagnosis and repair easier at all skill levels.
- [J2534 ECU Reprogramming Tool, No IP Limitation]: LAUNCH X431 PRO5 scan tool Upgrade all functions of X431 V+, PROS V1.0, PAD3. With the SmartBox3.0 can download the OEM software from the manufacturer’s server for free.
- [3 IN-1 FREE J2534 ECU Programming Device: LAUNCH X431 PRO5 support all new J2534/DOIP/CANFD protocols to access data and OE programming downloads for most Car; Support DC9-36V for HD Vehicle ( No NEED buy HD Module, SAVING $900+.)
- [ One-stop Intelligent Tools]: Workshop level scan tool X431 PRO5 with the repair fix solutions database, Code Assist, Repair Tips,Component Measurement, TSB, Relevant Cases,DTC Analysis to simplify complex diagnostic and achieve the trouble-free repair.
- [50+ Reset, Continuously Updated Reset Functions]: 50 resets reaching into the smallest parts to root out the problems. Extra 300+ repair functions ( in-vehicle catalog) for specific models extend the capability to regeneration, initiation, matching, etc.
Last update on 2024-06-20 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
