JB4 & JB5 – Pistons Out of Specification – 2013 Honda Pilot & Odyssey

NHTSA Campaign Number: 13V382
Manufacturer Honda (American Honda Motor Co.)
Components ENGINE
Potential Number of Units Affected 270



Premature Engine Piston Wear

A worn piston may suddenly fail, causing the engine to stall, increasing the risk of a crash.



Summary

Honda is recalling certain model year 2013 Pilot 2WD and 4WD vehicles and certain model year 2013 Odyssey vehicles.

During manufacturing of the engine piston, it is possible that the heat treatment process was not properly applied, resulting in the piston having an insufficient hardness level, making it more susceptible to premature wear.



Remedy

Honda will notify owners, and dealers will replace the engine short block free of charge.

The recall began on September 16, 2013.

Owners may contact Honda at 1-800-999-1009.

Honda’s recall numbers are JB4 (Honda Odyssey) and JB5 (Honda Pilot).



Notes

Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.



Check if your Honda has a Recall



A13-075
September 5, 2013



Applies To:

2013 Odyssey – Check the iN VIN status for eligibility
2013 Pilot – Check the iN VIN status for eligibility



Safety Recall: Pistons Out of Specification

(Supersedes 13-075, dated August 27, 2013, to revise the information marked by the black bars)



REVISION SUMMARY

Updated PARTS INFORMATION, REQUIRED MATERIALS, TOOL INFORMATION, repair steps, and multiple photo illustrations.



BACKGROUND

A limited number of Pilot and Odyssey engines may have been assembled with pistons that could be out of specification. Premature piston failure can occur, which may cause the engine to stall.



CUSTOMER NOTIFICATION

Owners of affected vehicles will be sent a notification of this campaign in September 2013.

Do an iN VIN status inquiry to make sure the vehicle is shown as eligible.

New or used vehicles affected by this campaign may be in your vehicle inventory. These vehicles must be repaired before they are sold.

Should a dealership sell an unrepaired vehicle that subsequently causes an injury or damage because of the recalled item, the dealership will be soley responsible to the damaged party, and will be required to defend and indemnify American Honda for any resulting claims. To see if a vehicle in inventory is affected by this campaign, do a VIN status inquiry before selling it



CORRECTIVE ACTION

Replace the short block assembly.



PARTS INFORMATION Common Parts

P/N
Head bolt (16 required): 90005-PAA-A01
Intake Cover Gasket: 17146-R70-A01
Intake Manifold Gasket: 17105-RCJ-A01
Catalytic Converter Gasket (two required): 18115-R70-A01
Oil Filter: 15400-PLM-A02
Nut, Flange (engine mount stopper nuts) (four required): 90302-S3V-A10
Nut, Self Locking (catalytic convertor) (eight required): 90212-RCA-A01
Gasket, Prechamber: 18393-SDB-A00
Gasket, Exhaust Pipe (two required): 18212-SA7-003
Bolt, Flange (side mount bolt to frame bracket) (two required): 90163-SDA-A01
Bolt, Flange (side engine mount bolts) (two required): 90164-SHJ-A00
Retainer (fuel line connector): 17711-S0X-931
O-Ring (fuel rail o-ring): 91301-PLC-000
Gasket A, EGR Pipe (EGR pipe gasket): 18716-R70-A01
Gasket B, EGR Pipe (EGR pipe gasket): 18719-R70-A01
Gasket, Rear Cylinder (head gasket): 12261-R70-A01
Gasket, Front Cylinder (head gasket): 12251-R70-A01
O-Ring (o-rings for coolant pipe) (two required): 91314-PH7-003
Gasket, Front Water Passage (coolant crossover) (one required): 19411-P8A-A03
Gasket, Rear Water Passage (coolant crossover) (one required): 19412-P8A-A02
O-Ring (A/C discharge hose o-ring): 80872-ST7-000
O-Ring (A/C suction side o-ring): 80871-ST7-000
Bolt, Flange (special bolt; rear subframe bolt) (two required): 90161-SHJ-A00
Ring, Snap (left side circlip only): 44319-SOX-A01



Odyssey

P/N
Engine Short Block: 10002-RV0-A01
Bolt, Flange (strut to knuckle) (four required): 90120-SHJ-A00
Nut, Flange (strut to knuckle) (four required): 90382-SP0-003
Bolt, Flange (subframe bolt) (four required): 90165-TK8-A00



Pilot

P/N
Engine Short Block: 10002-RN0-A11

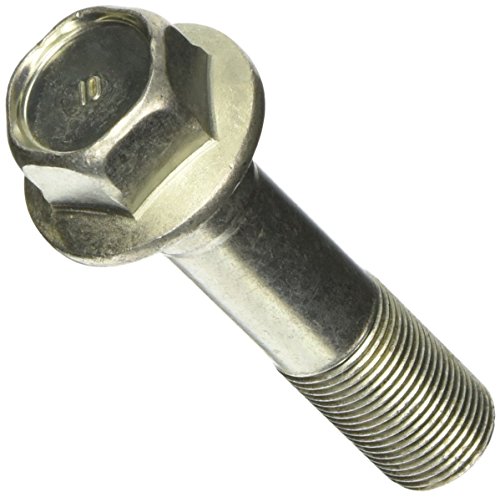

Bolt, Flange (strut to knuckle) (four required): 90119-SJC-A00
Nut, Flange (strut to knuckle) (four required): 90381-SJC-A00
Bolt, Flange (prop shaft bolts) (four required): 90113-S3V-A00
Bolt, Flange (special bolt, subframe) (four required): 90165-SHJ-A00
Bolt, Flange (subframe stiffener) (four required): 90167-SAA-010



REQUIRED MATERIALS

P/N
Antifreeze Coolant Type 2 (3 gallons): OL999-9011
0W-20 Engine Oil (5 quarts) 08798-9036
Power Steering Fluid 08206-9002



TOOL INFORMATION

Steering Wheel Holder (Snap-On WA96 or equivalent)
Subframe Alignment Pin 070AG-SJAA10S



WARRANTY CLAIM INFORMATION Odyssey

Flat Rate Time: 10.7 hours (includes alignment)
Failed Part: 10002-RV0-A01
Defect Code: 5GW00
Symptom Code: JB400
Skill Level: Repair Technician

Operation Number: 1111AJ



Pilot

Flat Rate Time: 10.7 hours (includes alignment)
Failed Part: 10002-RN0-A10
Defect Code: 5GW00
Symptom Code: JB500
Skill Level: Repair Technician

Operation Number: 1111AJ



REPAIR PROCEDURE

The following service manual procedures have been used in full or in part within this service bulletin. For more detail on these procedures, and torque specifications for some components, refer to the appropriate electronic service manual.



Engine/Transmission Assembly Removal

  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damaging any wires and terminals, unplug the circuit connectors carefully while holding the connector portion.
  • Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact other wiring or hoses, or interfere with other parts.
  1. Relieve the fuel pressure.
  2. Wait until the engine is cool, then carefully remove the radiator cap.
  3. Loosen the drain plug on the radiator, and drain the engine coolant.
  4. Drain the power steering fluid from the reservoir.
  5. Do the battery removal procedure.
  6. Remove the engine cover.

ENGINE COVER



  1. Evacuate the A/C system.
  2. Separate the A/C suction line at the right strut tower junction, and cover the lines with tape.
  3. Disconnect the breather pipe, then remove the intake air duct.

INTAKE AIR DUCT



  1. Remove the air cleaner assembly.
  2. Odyssey only. Disconnect the engine wire harness and starter cable from the main under-hood fuse box, then remove the main under-hood fuse box and the harness clamps.

MAIN UNDER-HOOD FUSE BOX



  1. Remove the harness clamps, then remove the battery base.

BATTERY BASE



  1. Remove the transmission shift cable from the transmission only.

transmission shift cable



  1. Remove the quick-connect fitting cover, then disconnect the fuel feed hose.

FUEL FEED HOSE



  1. Disconnect the brake booster vacuum hose and EVAP canister hose.

EVAP CANISTER HOSE



  1. Remove the steering joint cover, then disconnect the steering joint from the steering gearbox pinion shaft.

NOTE: Hold the steering wheel with the steering wheel holder.

STEERING JOINT



  1. Pilot only. Remove the harness clamps, then disconnect the positive alternator cable from the under-hood fuse/relay box.

POSITIVE ALTERNATOR CABLE



  1. Remove the PCM cover.

PCM COVER



  1. Remove the harness clamp, and disconnect the PCM connectors.

PCM CONNECTORS



  1. Disconnect the power steering pump inlet hose.

POWER STEERING PUMP INLET HOSE



  1. Disconnect the heater hoses.

HEATER HOSES



  1. Disconnect the upper radiator hose and the lower radiator hose at the engine.

RADIATOR HOSE



  1. Remove the mounting bolts from the upper half of the side engine mount bracket.

MOUNTING BOLTS



  1. Check that the engine/transmission is completely free of any vacuum hoses, fuel hoses, coolant hoses, and electrical connections.
  2. Raise the vehicle on the lift.
  3. Remove the front wheels.
  4. Remove the splash shield and the front undercover.
  5. Drain the engine oil.
  6. Drain the ATF.
  7. Pilot only. Remove the front subframe stiffener.

front subframe stiffener



  1. Remove the exhaust pipe.

EXHAUST PIPE



  1. Pilot only, with 4wd. Remove the bolts, and disconnect the propeller shaft from the transfer companion flange.

NOTE: Be sure to make a reference mark across the propeller shaft and transfer companion flange for reassembly.

TRANSFER COMPANION FLANGE



  1. Remove the torque converter cover from the transmission.
  2. Remove the drive plate bolts from the torque converter.

TORQUE CONVERTER COVER



  1. Disconnect the CKP sensor connector by removing the CKP sensor cover, then disconnecting connector.

CKP SENSOR



  1. Remove the lower transmission housing bolts.

MOUNTING BOLTS



  1. Separate the stabilizer links from the dampers.

STABILIZER LINK



  1. Remove the ABS sensor from the steering knuckle.
  2. Remove the front brake calipers.

CALIPER ASSEMBLY



  1. Separate the knuckles from the dampers by removing the two bolts.

PINCH BOLTS



  1. Disconnect the power steering hose and A/T cooler hose, then plug the line and hose.

POWER STEERING HOSE



  1. Disconnect the power steering pressure switch connector.

power steering pressure switch



  1. Remove the A/C high pressure line from the compressor, and cover the lines with tape.
  2. Disconnect the electrical connector from the front and rear engine mounts.
  3. Check that the engine/transmission and subframe are completely free of any hardware, electrical connections, and components.
  4. Prepare the subframe assembly for removal.
    • Remove the four 12 x 1.25 mm bolts for both the subframe front brackets.
    • Remove the two 12 x 1.25 mm bolts for both the subframe rear brackets.
    • Loosen but do not remove the four 14 X 1.5 mm main subframe bolts.

SUBFRAME



  1. Set up four equal sized jack stands (or equivalent equipment) under the vehicle’s subframe immediate area.
  2. Lower the vehicle until it is just above the jack stands.
  3. Position the jack stands (or equivalent equipment) so that they are equally spaced in the front and the back of the subframe.
  4. Lower the vehicle and set the subframe on the jack stands.

SUBFRAME



  1. Remove the four 14 x 1.5 mm main subframe bolts.
  2. Check that the engine/transmission and subframe are completely free of any hardware, electrical connections, and components.
  3. Slowly raise the vehicle. Make sure there are no components catching on the body.

NOTE: Pilot with 4WD only. Pay close attention to the propeller shaft; it may get snagged on the sway bar.

SUBFRAME



  1. Drain the remaining coolant from the drain port at the rear of the engine block. Remove the block heater plug, and let the coolant drain into a suitable container.
  2. Remove both cylinder heads. To prevent warping of the cylinder heads, loosen the bolts in sequence 1/3 turn at a time. Repeat the sequence until all of the bolts are loosened.

NOTE: You can remove each head as an assembly.

loosen the bolts in sequence



  1. Remove the starter bolts.

NOTE: Leave the electrical harness connected to the starter. The starter does not need to be removed. Remove the bolts to allow for sufficient clearance when separating the engine from the transmission.

STARTER



  1. Remove the driveshaft bearing bracket bolts, and rotate the bearing bracket counter clockwise to gain access to the engine support bracket bolts.

driveshaft bearing



  1. Remove the engine support bracket bolts.

NOTE: The driveshaft may separate from the transmission when the bolts are removed; however, there is no need to remove the entire driveshaft assembly.

DRIVESHAFT SUPPORT BASE



  1. Remove the rear transmission housing bolts.

transmission housing bolts



  1. Support the transmission using a jack. Use either a piece of wood or rubber block between the transmission and jack to prevent damage to the transmission housing.
  2. Remove the front and rear engine mount stop, then remove the bolt.

ENGINE MOUNT



  1. Use an engine hoist and straps to support the engine block for separation.

NOTE: There are several different methods to support the block. Use the one that best works for you.

engine hoist



  1. Remove the upper transmission housing mounting bolts.

transmission housing mounting bolts



  1. Lift the engine block from the subframe assembly, being careful not to shift the transmission off the jack.

engine block



  1. Transfer any remaining components from the old engine block to the new engine block including:
  2. Use an engine hoist and straps to support the new engine block for reattachment to the transmission.
  3. Reattach the engine block to the transmission in the reverse order of removal.
  4. Reinstall the front and rear engine mount bolts and engine mount stop.

ENGINE MOUNT



  1. Reinstall the engine support bracket bolts.

DRIVESHAFT SUPPORT BASE



  1. Verify the camshaft pulleys are at TDC.

driveshaft bearing bracket



  1. Reinstall the cylinder heads on the engine block.

TDC MARK



  1. Measure the diameter of each cylinder head bolt at 50 mm (2.0 in) and 45 mm (1.8 in) from the threaded end of the bolt.

TDC MARK



  1. Reinstall the cylinder heads on the engine block.
  2. Measure the diameter of each cylinder head bolt at 50 mm (2.0 in) and 45 mm (1.8 in) from the threaded end of the bolt.

NOTE: If either diameter is less than 11.3 mm (0.44 in), replace the cylinder head bolt.

cylinder head bolt



  1. Apply new engine oil to the threads and under the bolt heads of all cylinder head bolts.
  2. Torque the cylinder head bolts in sequence to 29 N•m (22 lb-ft) using a beam-type torque wrench.

NOTE: Be sure to tighten each bolt slowly and do not overtighten. If a bolt makes any noise while you are torquing it, loosen the bolt and retighten it from the first step.

cylinder head



  1. After torquing the cylinder head bolts, tighten them in two steps (90 degrees per step) in sequence. If you are using a new cylinder head bolt, tighten the bolt an additional 90 degrees.

NOTE: If you tighten a cylinder head bolt beyond the specified angle, go back to step 73 of the procedure. Do not loosen it back to the specified angle.

cylinder head bolts



  1. Install the remaining engine components in the reverse order of removal.
  2. Slowly lower the vehicle until it is right above the engine/transmission assembly.

NOTE: Make sure there are no components sticking out that may get caught on the body when the vehicle is being lowered

  1. Position the subframe for reinstallation to the body.
  2. Insert the four main subframe bolts and brackets, and tighten them until they are snug.

NOTE: Do not torque the bolts because subframe adjustment will be necessary once the vehicle has been lifted.

  1. Raise the vehicle.
  2. Adjust the subframe using the appropriate tool and torque all bolts.
  3. Reinstall remaining components in the reverse order of removal.
  4. Refill all fluids and do an alignment.





Download (PDF, 1.01MB)





Download (PDF, 415KB)





Download (PDF, 416KB)





Download (PDF, 107KB)





Download (PDF, 106KB)





Download (PDF, 123KB)





Download (PDF, 69KB)





Leave A Comment

Your email address will not be published. Required fields are marked *

*

This site uses Akismet to reduce spam. Learn how your comment data is processed.
