AWD Indicator Is On with DTC C1850-14 – 2012-2014 Honda CR-V

“This site contains affiliate links for which OEMDTC may be compensated”

A15-012
February 13, 2015



AWD Indicator Is On with DTC C1850-14



AFFECTED VEHICLES

YearModelTrimVIN Range
2012–14CR-VAWDALL with AWD



SYMPTOM

On some 2012–14 CR-V’s and in cold weather, the AWD indicator may come on with DTC C1850-14 (low or no torque to the rear wheels).



POSSIBLE CAUSES

Over time, moisture and cold weather will cause the AWD relay to fail.



CORRECTIVE ACTION

Replace the AWD relay.



REQUIRED MATERIALS

Part NamePart NumberQuantity
Power Relay Assembly39794-SDA-A02 AWD Indicator Is On with DTC C1850-14 - 2012-2014 Honda CR-V | small light1



WARRANTY CLAIM INFORMATION

The normal warranty applies.

Operation NumberDescriptionFlat Rate TimeTemplate IDFailed Part Number
7301G0Replace the AWD relay.0.6 hr15-012A39794-SDA-A03

Defect Code: 03217
Symptom Code: 03272
Skill Level: Repair Technician



REPAIR PROCEDURE

  1. Find and remove the AWD relay (for details on how to do this, see the electronic service manual).
AWD relay



  1. Replace the AWD relay.
AWD relay



  1. Reinstall the parts in reverse order (see the electronic service manual for details).

END




Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [161.16 KB]


Bestseller No. 1

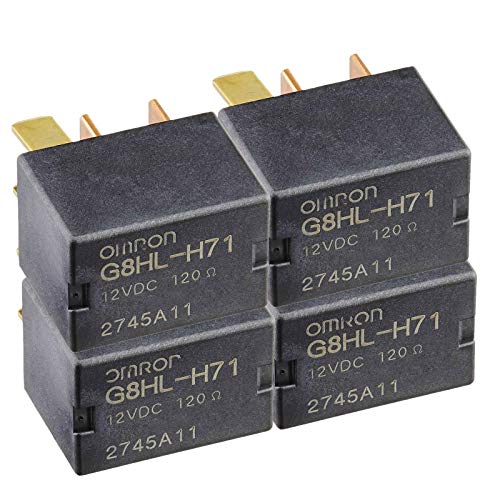

4 Pack G8HL-H71 AC and Starter Relay 39794-SDA-A03 39794-SDA-A05 Compatible for Crosstour CR-V CR-Z Element Insight Odyssey Pilot Acura TL TSX MDX
  • Model:Omron G8HL-H71 12VDC Low profile relay
  • PCB: Maximum of height is 18.2mm,P-in: Maximum of height is 16.7mm
  • 39794-SDA-A03; 39794-SDA-A05; G8HL-H71,1R191,Accessory Power Relay 1R2085 RY737 Smaller, less heating and capable to carry high
  • Commonly used for A/C compressors Fan Motor, starters, headlights, horns, Ignition ,Fog Lamp, Headlamp, fans, Rear Window Defroster, Blower Motor, Cargo Light, Driving Light,Oxygen (O2) Sensor relay, Fuel Pump / Circuit Opening Relay and other accessories. It fits for 2009-2013 AcuraeBay TL; 2004-2013 AcuraeBay TSX; 2007-2014 AcuraeBay MDX; 2003-2014 HondaeBay Accord; 2005-2014 HondaeBay Odyssey; 2006-2014 HondaeBay Civic, 2007-2014 HondaeBay CR-V please see the fitment in the description below carefully
  • TOP quality starter relays, constructed of high-quality material for long lasting durability and reliability
Bestseller No. 2

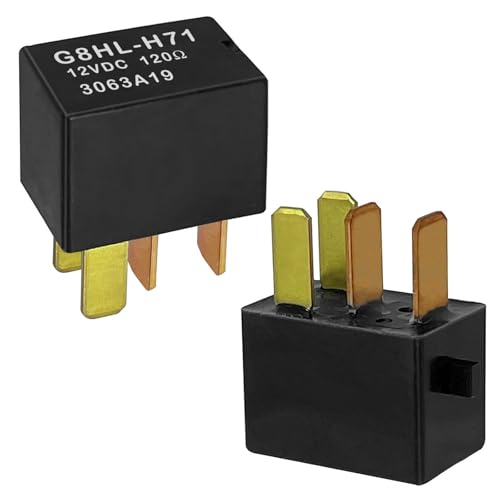

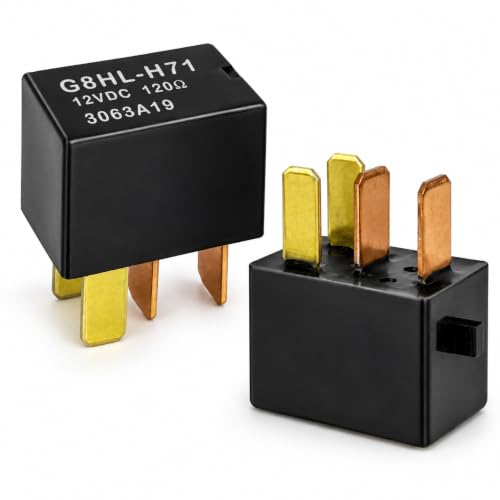

Relay G8HL-H71 (Set of 2), 39794-SDA-A03 39794-SDA-A05 12VDC Automotive Relay - Compatible for 2003-2014 Accord 2006-2014 Civic 2007-2014 Acura MDX CR-V
  • Versatile Compatibility: The G8HL-H71 relay 12 VDC is the perfect solution for powering various vehicle accessories, including A/C compressors, headlights, horns, fans, and more.
  • Easy Installation: The relay is designed with a simple plug-in installation process, making it easy for anyone to set up without requiring any special tools or technical expertise.
  • Reliable Performance: The G8HL-H71 relay 12 VDC is built to withstand the rigors of regular use, ensuring reliable performance and longevity.
  • Wide Application: The G8HL-H71 relay compatible for HondaeBay Accord 2003-2014, Civic 2006-2014, CR-V 2007-2014, Odyssey 2005-2014, ILX 2013-2014, MDX 2007-2014, NSX 2004-2005 and more vehicles.
  • Affordable Solution: Compared to other relays in the market, this G8HL-H71 relay is an affordable and reliable solution for powering various accessories in your vehicle.
Bestseller No. 3

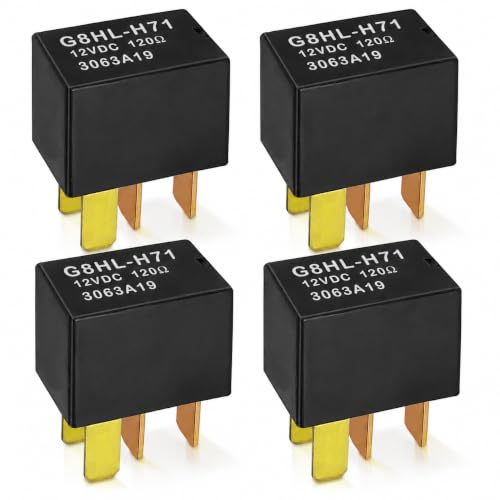

Relay G8HL-H71 (Pack of 4), Automotive Relay 12VDC 39794-SDA-A03 39794-SDA-A05 - Compatible for 2003-2014 Accord 2006-2014 Civic 2007-2014 Acura MDX CR-V
  • Versatile Compatibility: The G8HL-H71 relay 12 VDC is the perfect solution for powering various vehicle accessories, including A/C compressors, headlights, horns, fans, and more.
  • Easy Installation: The relay is designed with a simple plug-in installation process, making it easy for anyone to set up without requiring any special tools or technical expertise.
  • Reliable Performance: The G8HL-H71 relay 12 VDC is built to withstand the rigors of regular use, ensuring reliable performance and longevity.
  • Wide Application: The G8HL-H71 relay compatible for HondaeBay Accord 2003-2014, Civic 2006-2014, CR-V 2007-2014, Odyssey 2005-2014, ILX 2013-2014, MDX 2007-2014, NSX 2004-2005 and more vehicles.
  • Affordable Solution: Compared to other relays in the market, this G8HL-H71 relay is an affordable and reliable solution for powering various accessories in your vehicle.
Bestseller No. 4
Augeny 2 PCS Car AC & Starter Relay, 4 Pin Multiple Use Relay Plug, Compatible with Accord, Civic, Element, CR-V, CR-Z
  • 【Reliable Quality】: The shell is made of high-quality plastic, and the base is sealed and waterproof, difficult to short circuit. Silver alloy contacts, the surface is not easily oxidized, and has good electrical and thermal conductivity. Equipped with a full copper electromagnetic coil, the temperature rise is lower and the suction power is stronger. It can withstand larger currents and has more stable working performance.
  • 【Main Function】: Automotive relays control the current of high-voltage lines by controlling the current of low-voltage lines and play the role of current switches. Its main function in automobiles is to start the motor to rotate by making the small current control the large current, thereby driving the magneto rotor inside the generator to rotate.
  • 【High Performance】: The benefits of alternating-current relays are significant in the automotive industry. The control and protection of circuits can be well realized with the use of AC relays. AC relays can withstand high voltage and high temperature environments, while also offering fast response and low power consumption.
  • 【Easy to Carry & Install】: The size is 0.87×0.57×1.07 inches. The compact design is very convenient to carry and can be placed in the tool box without taking up much space. It is suitable for ordinary cars and is simple to operate. You only need to connect the relay with wires, no other tools are needed, making it easy for you to use and replace, so that your parts can work properly.
  • 【Wide Compatibility】: Please go to the details page to check the specific matching models and years, and confirm the match before ordering. Suitable for air conditioning compressor fan motor, starter, headlight, horn, ignition, fog light, headlight, fan, rear window defroster, blower motor, trunk lighting, driving lights, oxygen sensor relay, fuel Pump/circuit breaker etc.
Bestseller No. 5
Ohleats 2PCS Car AC Relay, G8HL-H71 AC and Starter Relays Replace 39794-SDA-A03, Power Relay Assembly Starter Replacement, 4 Pins Multiple Use Relays Plug for Accord, Civic, Element, CR-V, CR-Z
  • 【Compatible Range】: Its part numbers are 39794-SDA-A03, 39794-SDA-A05, G8HL-H71 and 1R191. It is suitable for some specific vehicles, please check the description page for the specific model and year. It is widely used in various parts of cars, such as headlight, horn, ignition, fog light, rear window defroster, etc.
  • 【Practical Function】: As a current switch, the relay controls the current of the high voltage line by controlling the current of the low voltage line. It is mainly used in automobiles to start the motor rotation by controlling the high current through small current, thus driving the magneto rotor inside the generator to rotate.
  • 【Protecting Circuit】: The use of AC relay can well realize the control and protection of vehicle circuits, which has obvious effects on the automobile. It can withstand high voltage and high temperature environments, and it also features fast response and low power consumption.
  • 【Safe & Reliable】: Plastic shell is sturdy and durable, the base is sealed and waterproof, not easy to short circuit. Silver alloy contacts have good electrical and thermal conductivity. All-copper solenoid coil has lower temperature rise, which can bear larger current and has more stable working performance.
  • 【Size & Use】: You will receive 2 AC relays with size of 0.87 × 0.57 × 1.07 inches, which are compact and easy to carry and do not take up much space when storing. It is simple to operate, you just need to connect the relays with wires without any other tools for easy use and replacement.
Bestseller No. 6
CIOM 4 Pack AC and Starter Relay 39794-SDA-A03 39794-SDA-A05 for Accord Civic Crosstour CR-V CR-Z Element Insight Odyssey Pilot TL TSX MDX, 4 Pins Power Assembly
  • Compatible with:AC and starter relays are suitable for accessories such as air conditioning compressor fan motors, starters, headlights, horns, ignition, fog lights, headlights, fans, rear window defrosters, blower motors, luggage lights, driving lights, oxygen sensor relays, fuel pump/circuit breakers, etc.It fits for 2009-2013 AcuraeBay TL; 2004 -2013 AcuraeBay TSX; 2007-2014 AcuraeBay MDX; 2003-2014 HondaeBay Accord; 2005-2014 HondaeBay Odyssey; 2006-2014 HondaeBay Civic, 2007-2014 HondaeBay CR-V please see the fitment in the description below carefully
  • Part Number:39794-SDA-A03; 39794-SDA-A05; G8HL-H71,1R191,Accessory Power Relay 1R2085 RY737
  • Product specifications:125mA, coil voltage: 12VDC, contact form: SPDT (1 Form C), contact rated value (current): 35A, coil power: 1.7W.
  • Product features:Made of high-quality materials, with long-lasting durability and reliability, meeting or exceeding OEM standards, easy installation, safe use, and long service life
  • Professional after-sales:We sell professional parts ,and provide free technical support. If you have any problems or dissatisfaction after receiving the products, please contact us directly to get New Replacement or Return.
Bestseller No. 7
Relay G8HN-H70 (Set of 2), DC12V 20A Micro ISO Plug-in Relay for Automotive, Compatible for Honda Acura Vehicle
  • DC12V Coil: This G8HN-H70 relay is designed with a DC12V coil, making it highly efficient and reliable.
  • SPST Contact Type: The SPST contact type ensures that the relay G8HN-H70 operates with maximum efficiency, making it an ideal choice for automotive applications.
  • OEM Components: OEM Direct fit replacement parts built to last. With its high-wattage capability, G8HN-H70 relay can handle even the most demanding applications.
  • Replaces OEM part numbers: G8HN-1A4T-RH, 39792-SDA-A01, G8HN-H70, 39794-S0K-A01, 39794-S04-014, 39794-S04-004.
  • Powerful Commonly: used for Excavators and Automotive A/C compressors Fan Motor, starters, headlights, horns, Ignition, Fog Lamp, Headlamp, fans.
Bestseller No. 8

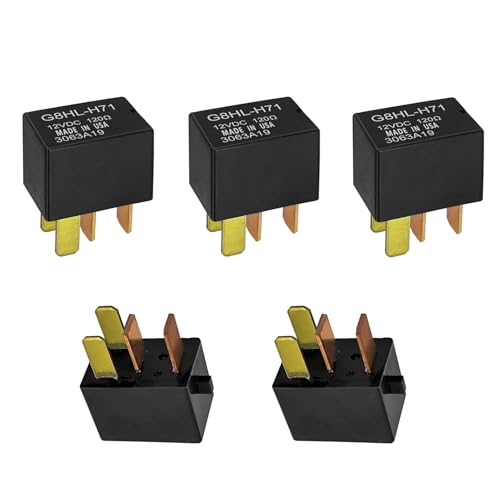

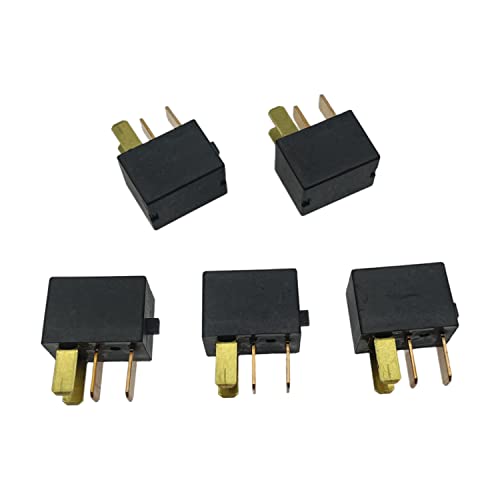

HYXUAN 5 Pack AC Relay G8HL-H71 Power Relay Assembly Compatible with 2003-2014 Accord 2006-2014 Civic 2007-2014 Acura MDX CR-V
